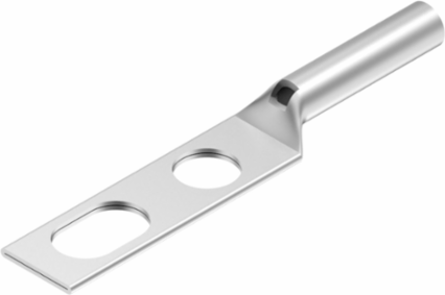

Burndy YAZ6C2TC38SL Long Length Copper Compression Terminal, 6 AWG, 3/8 Inch Bolt Size, 35 kV
- MPN: YAZ6C2TC38SL
- UPC: 781810499436
- PPN: BUR-10112964
CAD
$37.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Compression Terminal, Slotted, #6 AWG (code),30 Navy, Blue, 7 or 374 Index, 3/8 IN Bolt Size
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/8 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Hole Size mm
- 10 mm
- Dimension - Length Overall inch
- 3.22 in
- Dimension - Outside Diameter inch
- 0.29 in
- Dimension - Strip Length inch
- 1-3/16
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.12 in
Dimension - Hole Size inch0.40 in
Dimension - L Length Overall mm82 mm
Dimension - N inch0.41 in
Dimension - Pad Width inch0.58 in
Dimension - Stud Size inch3/8
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 6 AWG
- Conductor - Copper Str Navy Size
- 30 (19) Navy
- Conductor - Material
- Copper
Conductor - Copper Solid Size Range6 AWG
Conductor - Copper Str Size6 AWG
General
- Color Code
- Blue
- Die Index
- 7;374
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810499436
Connector TypeTerminal
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
UPC 12 Digit7818104994366
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 50
