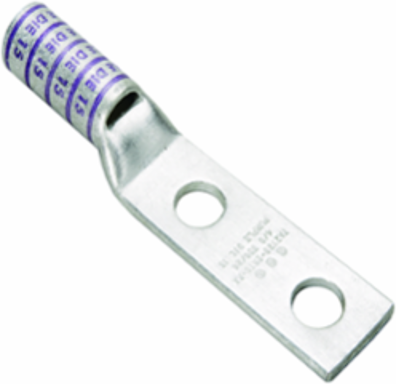

Burndy YAZ8C2TC14 Long Length Barrel Compression Terminal, 8 AWG, 2 Hole, 35 kV
- MPN: YAZ8C2TC14
- UPC: 781810227565
- PPN: BUR-25019127
CAD
$14.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CU Compression Terminal Code Conductor, Beveled Entry, 2 Hole/W/InspWindow, #8AWG(Code) 23(Navy), 600V-35kV, 1/4" Stud, 5/8" Spacing, Lng bbl, Tin Plated.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 3/4 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Length Overall inch
- 2.19 in
- Dimension - Outside Diameter inch
- 0.27 in
- Dimension - Strip Length inch
- 7/8
- Dimension - Z inch
- 0.34 in
Dimension - B Length inch0.75 in
Dimension - Hole Size inch0.27 in
Dimension - L Length Overall mm56 mm
Dimension - N inch0.31 in
Dimension - Pad Width inch0.44 in
Dimension - Stud Size inch1/4
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 23 (7) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Size8 AWG
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Skived
- Material
- Copper
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin - Electro Plated
- Trade Name
- HYLUG™
- UPC
- 781810227565
Color CodeRed
Die Index49
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
PlatedY
Sub BrandHYLUG
TypeLong Barrel, Skive, Tin Plated
UPC 12 Digit7818102275655
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
