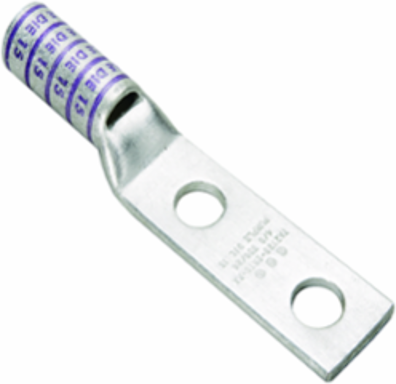

Burndy YAZ8C2TC14E1 Long Length Barrel HYLUG Connector, 2 Holes, 8 AWG, 35 kV, 1/4 Inch Stud

MPN: YAZ8C2TC14E1
UPC: 781810196939
PPN: BUR-25015924

$6.95

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Cu Tubing Hylug (2 Hole Code), 2 Holes with Inspection Window, #8 AWG Code,23 Navy, 600V-35kV, 1/4" stud, Long, Compression, 0.27 in BCD.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction	3/4 in
Dimension - Bolt Hole Size inch	0.27 in
Dimension - Hole Size mm	7 mm
Dimension - Length Overall inch	2.57 in
Dimension - Outside Diameter inch	0.27 in
Dimension - Strip Length inch	7/8
Dimension - Z inch	0.34 in

Dimension - B Length inch	0.75 in
Dimension - Hole Size inch	0.27 in
Dimension - L Length Overall mm	65 mm
Dimension - N inch	0.31 in
Dimension - Pad Width inch	0.44 in
Dimension - Stud Size inch	1/4
Physical Attribute - Tongue Angle	Straight

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper Str Navy Size	23 (7) Navy
Conductor - Material	Copper

Conductor - Copper Str Size	8 AWG

General

Application	For Code Conductor
Connector Type	Terminal
Feature - Barrel Style	Skived
Material	Copper
Physical Attribute - Tongue Type	Standard
Plating Type	Tin - Electro Plated
Trade Name	HYLUG™
UPC	781810196939

Color Code	Red
Die Index	49
Feature - Barrel Type	Long
Physical Attribute - Number of Holes	2
Plated	Y
Sub Brand	HYLUG
Type	Long Barrel, Skive, Tin Plated
UPC 12 Digit	7818101969399
