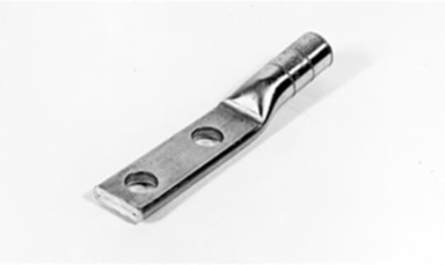

Blackburn AL 800 NTN-SSH Tin Plated Aluminum Compression Lug 800 kcmil 2 Hole with Stainless Steel Hardware
- MPN: AL 800 NTN-SSH
- UPC: 075114259767
- PPN: T-B-AL 800 NTN-SSH
- UNSPSC: 39121409
CAD
$236.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tin Plated Aluminum Compression Lug, 800 kcmil AL9CU UL listed, 400 mm2. Installing Dies 140H, 342, 474, 1 1/2. Two Hole NEMA Pad. Length 8-5/16 inch. Pad 1-3/4 inch wide x 3-5/8 inch long x 39/64 inch thick. (2) 9/16 inch Diameter Holes on 1-3/4 inch centers. Oxide Inhibitor. Light Blue Cap. Includes Stainless Steel Hardware (2) Bolts 1/2-13 x 3 inch Full Thread, (2) 1/2-13 Nuts, (4) 1/2 inch Flat Washer, and (4) Stainless Steel Belleville 1/2 inch Washers.
Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
Additional Information
- Application
- General purpose lugs for Aluminum and Copper terminations.
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug Two Hole
- Standards
- ANSI C119.4
- Wire Size
- 800 kcmil
Brand / LabelHomac
Effective Date20150901
Product NameELECTRICAL CONNECTOR,>1000V
Special FunctionsDual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification. Stainless Steel Hardware.
Surface FinishingTin Plated
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
