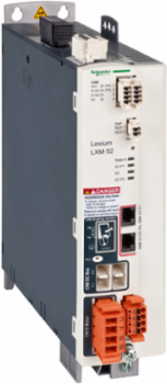

Schneider Electric LXM52DD30C41000 Lexium 52 Single Drive 10A, 3kW, IP20, 208-480V
- MPN: LXM52DD30C41000
- PPN: SCH-LXM52DD30C41000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 52 & Motors range, an offer of standalone servo drives for PacDrive 3. The single drive features SERCOS III physical interface. It offers 4 digital/4 touch probe inputs and 4 digital outputs. It is a single drive with a rated supply voltage of 208V to 480V, a continuous output current of 10A and a continuous power of 3kW. It is furnished with connector terminals for electrical connection. It is an IP20 rated product. It weighs 2.7kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motor SH3 (100mm, 3 motor stacks), servo motor SH3 (100mm, 4 motor stacks) and servo motor SH3 (140mm, 1 motor stack). Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Sweden, United States
Depth217 mm
Communications & Management Attributes
- Communication Interface
- SERCOS III, Integrated
Complementary Attributes
- Line Rated Current
- 10.0 A
- Maximum Current Irms
- 30.0 A
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
Maximum Ambient Air Temperature For Operation45.0 °C
Maximum Operational Altitude3000.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM
- Contact Bounce Time
- > 1 ms compliment of STO_A, compliment of STO_B, > 1 ms compliment of STO_A, compliment of STO_B> 1 ms compliment of STO_A, compliment of STO_B, > 1 ms compliment of STO_A, compliment of STO_B
- Nominal Voltage
- 208 V three phase, 400 V three phase
- Tightening Torque
- CN1 0.68-0.68 N.m, CN10 0.68-0.68 N.m
- Carbon Footprint Of The Distribution Phase [A4]
- 0.4621567111, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0214965162, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 5 205 kg CO2 eq., 5205.4287814028
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI110605EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Component Name
- LXM52
- Derating Altitude Scale
- 80.0 m
- Device Short Name
- LXM 52
- Maximum Operational Altitude
- 3000.0 m
- Nominal Power
- 3 kW
- Phase
- three phase
- Product Or Component Type
- single drive
- Returnability
- Yes
- Software Version
- EIME v5.8.1
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 5 241 kg CO2 eq.
- Pep Code
- ENVPEP110705EN
- Pep Verification Date
- 2020-08-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 10624.629
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 68 mm
- Maximum [In] Rated Current
- 10.0 A
- Package Weight(Lbs)
- 3.311 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer
Electrical Connectionterminal 0.75...5.3 mm², 18 AWG...10 AWG CN1), terminal 0.75...5.3 mm², 18 AWG...10 AWG CN10)
Supply Voltage200-240 V three phase, 380-480 V three phase
Certificate AgencyCE, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 1.6722881844
Carbon Footprint Of The Manufacturing Phase [A1 To A3]33 kg CO2 eq., 32.9567226225
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id3
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Continuous Power5.6 kW
Derating Altitude Start1000.0 m
Environmental Characteristic3K3 conforming to IEC 60721-3-3
Minimum Ambient Air Temperature For Operation0.0 °C
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductPacDrive 3
Shock Resistance100 m/s² IEC 60721-3-3
Supply Frequency50...60 Hz - 5...5 %
Switching Frequency8 kHz
Vibration Resistance10 m/s² conforming to IEC 60721-3-3
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal270 mm
[Us] Rated Supply Voltage400 V208...480 V - 15...10 %
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9032896085
Environment Attributes Main
- Product Compatibility
- servo motor MH3 140 mm, 1 optimized in terms of torque and speedservo motor SH3 100 mm, 3 optimized in terms of torque and speed, servo motor SH3 100 mm, 4 optimized in terms of torque and speedservo motor SH3 140 mm, 1 optimized in terms of torque and speed, servo motor MH3 100 mm, 3 optimized in terms of torque and speed
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-50 °C
- Environmental Disclosure
- ENVPEP110705EN
- Ip Degree Of Protection
- IP20 IEC 60721-3-3
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 %
- Pep Verification Date
- 2020-08-01
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint5240.541445437
Circularity ProfileENVEOLI110605EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP110705EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase
- Range Of Product
- PacDrive 3
Product Or Component Typesingle drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Output Current 3s Peak
- 30 A, 30.0 A
- Discrete Output Voltage
- 24 V DC
Continuous Output Current10 A 8 kHz
Number Of Outputs2 digital
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Number Of Inputs
- 4 digital, 4 touch probe
Discrete Input Voltage24 V DC
