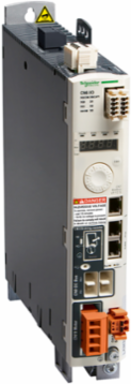

Schneider Electric LXM32AD30N4 Lexium 32 Motion Servo Drive 30A, 3 Phase, 208-480V, IP20
Schneider Electric LXM32AD30N4 Lexium 32 Motion Servo Drive 30A, 3 Phase, 208-480V, IP20
- MPN: LXM32AD30N4
- PPN: SCH-LXM32AD30N4
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3001.65/ EA
Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 1 capture, 2 safety, 4 logic discrete inputs and 2 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 10A at 8kHz and a continuous power of 5600W at 400V. It is furnished with terminal for electrical connection and three RJ45 connectors for CANmotion, CANopen, and Modbus, integrated communication interfaces. It is an IP20 rated product. Its dimensions are 68mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 2.6kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motors BMH and BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
Specifications
Environment
- Product Certifications
- UL || CSA || TÜV
- Standards
- EN/IEC 61800-3 || EN/IEC 61800-5-1
- Environmental Characteristic
- classes 3C1 IEC 60721-3-3
- Electromagnetic Compatibility
- conducted EMC, class A group 1 EN 55011 || conducted EMC, class A group 2 EN 55011 || conducted EMC, environment 2 category C3 EN/IEC 61800-3 || conducted EMC, category C2 EN/IEC 61800-3 || conducted EMC, environments 1 and 2 EN/IEC 61800-3 || electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2 || susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-3 || 1.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5 || electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4 || radiated EMC, class A group 2 EN 55011 || radiated EMC, category C3 EN/IEC 61800-3
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20 conforming to EN/IEC 60529 || IP20 conforming to EN/IEC 61800-5-1
- Relative Humidity
- Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
Ambient Air Temperature For Operation0-50 °C UL
Shock Resistance15 gn 11 ms EN/IEC 60028-2-27
Vibration Resistance1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
Pollution Degree2 EN/IEC 61800-5-1
Type Of Coolingintegrated fan
Operating Altitude<= 1000 m without derating || > 1000...3000 m with conditions
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110705EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI110605EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Product Compatibility
- servo motor BMH 100 mm, 3 || servo motor BMH 140 mm, 1 || servo motor BSH 100 mm, 3 || servo motor BSH 100 mm, 4 || servo motor BSH 140 mm, 1
- Discrete Input Logic
- positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1 || positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1 || positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
- Electrical Isolation
- between power and control
- Status Led
- 1 LED (red) servo drive voltage || 1 LED error || 1 LED RUN
- Transmission Rate
- 1 Mbps 4-4 m CANopen, CANmotion || 125 kbps 500-500 m CANopen, CANmotion || 250 kbps 250-250 m CANopen, CANmotion || 50 kbps 1000-1000 m CANopen, CANmotion || 500 kbps 100-100 m CANopen, CANmotion || 9600, 19200, 38400 bps 40-40 m Modbus
- Signalling Function
- display of faults 7 segments
- Net Weight
- 2.6 kg
- Connector Type
- RJ45 (labelled CN4 or CN5) CANmotion || RJ45 (labelled CN4 or CN5) CANopen || RJ45 (labelled CN7) Modbus
- Communication Service
- 1 receive SDO CANmotion || 1 transmit SDO CANmotion || 2 PDOs conforming to DSP 402 CANmotion || 2 SDOs receive CANopen || 2 SDOs send CANopen || 4 configurable mapping PDOs CANopen || CANopen device profile drives and motion control CANopen, CANmotion || display of faults on integrated display terminal Modbus || emergency CANopen, CANmotion || event-triggered, time-triggered, remotely requested,sync (cyclic), sync(acyclic) CANopen || node guarding, heartbeat CANopen || position control mode CANmotion || position control, speed profile, torque profile and homing mode CANopen || sync CANmotion
- Electrical Connection
- terminal 3 mm², AWG 12 CN8) || terminal 5 mm², AWG 10 CN1) || terminal 5 mm², AWG 10 CN10)
- Switching Frequency
- 8 kHz
- Discrete Output Logic
- positive or negative DO)EN/IEC 61131-2
- Method Of Access
- slave
- Safety Function
- STO (safe torque off), integrated
- Output Voltage
- <= power supply voltage
- Maximum Leakage Current
- 30 mA
- Overvoltage Category
- III
- Tightening Torque
- CN8 0.5-0.5 N.m || CN1 0.7-0.7 N.m || CN10 0.7-0.7 N.m
- Discrete Input Number
- 1 capture || 2 safety || 4 logic
- Response Time On Output
- 250 µs DO)discrete
- Sampling Duration
- DI 0.25 ms discrete
Type Of Cablesingle-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
Height270 mm
Physical Interface2-wire RS485 multidrop Modbus
Discrete Input Voltage24 V DC capture || 24 V DC logic || 24 V DC safety
Response Time<= 5 ms compliment of STO_A, compliment of STO_B
MarkingCE
Contact Bounce Time<= 1 ms compliment of STO_A, compliment of STO_B || 2 µs CAP || 0.25 µs...1.5 ms DI
Communication InterfaceCANmotion, integrated || CANopen, integrated || Modbus, integrated
Braking Current50 mA
Discrete Output Voltage<= 30 V DC
Discrete Output Number2
Discrete Input Typecapture CAP || logic DI || safety compliment of STO_A, compliment of STO_B
Control Signal Typeservo motor encoder feedback
Number Of Addresses1-127 CANopen, CANmotion || 1-247 Modbus
Operating Positionvertical +/- 10 degree
Width68 mm
Depth237 mm
Protection Typeagainst reverse polarity inputs signal || against short-circuits outputs signal
Discrete Output Typelogic DO)24 V DC
Safety LevelSIL 3 EN/IEC 61508 || PL = e ISO 13849-1
Specifications
- Network Frequency
- 47.5...63 Hz
- Output Current 3S Peak
- 30 A 208 V 5 s || 30 A 480 V 5 s
- Format Of The Drive
- book
- Network Number Of Phases
- three phase
- Supply Voltage Limits
- 170-264 V || 323-528 V
- Nominal Power
- 2 kW 208 V 8 kHz || 3 kW 400 V 8 kHz || 3 kW 480 V 8 kHz
- Continuous Power
- 2800 W 208 V || 5600 W 400 V || 5600 W 480 V
- Supply Frequency
- 50/60 Hz - 5...5 %
[Us] Rated Supply Voltage200...240 V - 15...10 % || 380...480 V - 15...10 %
Range Of ProductLexium 32
Product Or Component Typemotion servo drive
Line Current9.2 A 59 % 208 V, with external line choke 1 mH || 11.1 A 77 % 400 V, with external line choke 1 mH || 9.6 A 85 % 480 V, with external line choke 1 mH || 9.8 A 128 % 208 V, without line choke || 8.3 A 148 % 400 V, without line choke || 7 A 152 % 480 V, without line choke
Emc Filterintegrated
Continuous Output Current10 A 8 kHz
Device Short NameLXM32A
