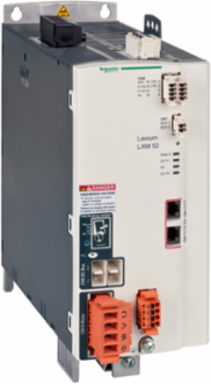

Schneider Electric LXM52DD72C41000 Lexium 52 Single Drive 13A/72A, 208V to 480V, IP20
- MPN: LXM52DD72C41000
- PPN: SCH-LXM52DD72C41000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the Lexium 52 & Motors range, an offer of standalone servo drives for PacDrive 3. The single drive features SERCOS III physical interface. It offers 4 digital inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 208V to 480V, a continuous output current of 13A and a continuous power of 7kW. It is furnished with connector terminals for electrical connection. It is an IP20 rated product. It weighs 5kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE. It meets EN/IEC 61800-3 standards. This product is compatible with servo motor SH3 (100mm, 4 motor stacks), servo motor SH3 (140mm, 2 motor stacks) and servo motor SH3 (140mm, 3 motor stacks). Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- PacDrive 3
- Product Compatibility
- servo motor SH3 100 mm, 4 optimized in terms of torque and speed || servo motor SH3 140 mm, 2 optimized in terms of torque and speed || servo motor SH3 140 mm, 3 optimized in terms of torque and speed || servo motor SH3 140 mm, 4 optimized in terms of torque and speed || servo motor SH3 205 mm, 1 optimized in terms of torque and speed || servo motor SH3 205 mm, 2 optimized in terms of torque and speed || servo motor SH3 205 mm, 3 optimized in terms of torque and speed || servo motor MH3 140 mm, 2 optimized in terms of torque and speed || servo motor MH3 140 mm, 3 optimized in terms of torque and speed || servo motor MH3 190 mm, 1 optimized in terms of torque and speed || servo motor MH3 190 mm, 2 optimized in terms of torque and speed || servo motor MH3 190 mm, 3 optimized in terms of torque and speed
Product Or Component Typesingle drive
Device Short NameLXM 52
Complementary
- Continuous Power
- 13 kW
- Output Current 3S Peak
- 72 A
- Discrete Input Voltage
- 24 V DC
- Net Weight
- 5 kg
- Number Of Inputs
- 4 digital
- Discrete Output Voltage
- 24 V DC
- [Us] Rated Supply Voltage
- 208...480 V - 15...10 %
- Overvoltage Category
- III
- Tightening Torque
- CN10 0.68-0.68 N.m
- Continuous Output Current
- 13 A 8 kHz
Number Of Outputs2 digital
Height274.1 mm
Network Number Of Phases3 phases
Contact Bounce Time> 1 ms compliment of STO_A, compliment of STO_B
Electrical Connectionterminal 0.75...10 mm², AWG 18...AWG 8 CN1)
Switching Frequency8 kHz
Width108 mm
Depth217 mm
Nominal Power7 kW
Supply Frequency50...60 Hz - 5...5 %
Environment
- Product Certifications
- CE
- Standards
- EN/IEC 61800-3
- Environmental Characteristic
- 3K3 IEC 60721-3-3
- Relative Humidity
- 5-95 %
- Ip Degree Of Protection
- IP20 EN/IEC 60721-3-3
Ambient Air Temperature For Operation0-50 °C
Shock Resistance100 m/s² EN/IEC 60721-3-3
Vibration Resistance10 m/s²EN/IEC 60721-3-3
Pollution Degree2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110705EN
- Pvc Free
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI110605EN
