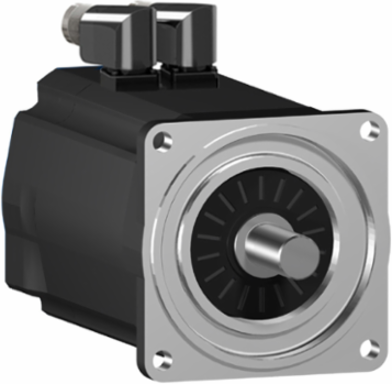

Schneider Electric SH31402P12A2000 Servo Motor 19.5Nm, 4k RPM, IP54/IP65, 140mm Flange
- MPN: SH31402P12A2000
- PPN: SCH-SH31402P12A2000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for high-performance applications, this servo motor from Schneider Electric delivers an impressive torque of 19.5Nm and operates at a robust 4,000 RPM. Designed with a dual IP rating of IP54/IP65, it offers enhanced protection against dust and moisture, making it suitable for demanding environments. The 140mm flange size ensures compatibility with a variety of automation and control systems, providing reliable motion control for diverse industrial applications. Whether you are optimizing machinery or enhancing automation systems, this servo motor stands out for its blend of power and durability.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 60.1 N.m 115...480 V three phase
- Continuous Power
- 3900 W
- Maximum Mechanical Speed
- 4000 rpm
- Maximum Current Irms
- 44.1 A
- Torque Constant
- 1.47 N.m/A 120 °C
- Maximum Radial Force
- 2240 N (1000 rpm), 1780 N (2000 rpm), 1550 N (3000 rpm)
- Number Of Motor Poles
- 5
- Stator Inductance
- 11.225 mH
- Rated Supply Voltage
- 115...480 V
- Motor Flange Size
- 140 mm
- Centring Collar Depth
- 3.5 mm (0.14 in)
- Mounting Holes Diameter
- 11 mm (0.43 in)
- Shaft Diameter
- 24 mm (0.94 in)
- Key Width
- 8 mm (0.31 in)
- Electrical Connection
- rotatable right angled connector
- Type Of Cooling
- natural convection
- Speed Feedback Resolution
- 128 periods
- Country of Origin
- Germany
- Rohs Exemption Information
- Yes
- Pvc Free
- Yes
Continuous Stall Torque19.5 N.m 115...480 V three phase
Nominal Output Power1460 W (115 V single phase), 2690 W (230 V single phase), 3860 W (400 V three phase), 3660 W (480 V three phase)
Nominal Speed750 rpm (115 V single phase), 1500 rpm (230 V single phase), 3000 rpm (400 V three phase), 3600 rpm (480 V three phase)
Continuous Stall Current13.2 A
Back Emf Constant101 V/krpm 20 °C
Maximum Axial Force300 N
Stator Resistance0.6 Ohm
Network Number Of Phasesthree phase
Length272.5 mm (10.73 in)
Centring Collar Diameter130 mm (5.12 in)
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes165 mm (6.50 in)
Shaft Length50 mm (1.97 in)
Shaft Endparallel key
Mounting Supportinternational standard flange
Encoder Typeabsolute multiturn SinCos Hiperface
Product Or Component Typeservo motor
ComplianceEU RoHS, China RoHS, Mercury free, PVC free
Mercury FreeYes
Warranty18 months
