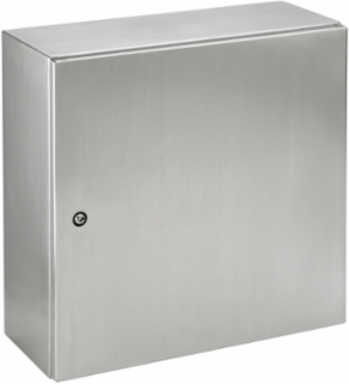

nVent Hoffman M1200800300GSS GL66 Wallmount 1/4 Turn Latch Enclosure, 1200x800x300mm, SS 304, IP66
- MPN: M1200800300GSS
- UPC: 783510268046
- PPN: HOF-M1200800300GSS
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This GL66 stainless steel wallmount uses quarter turn latching with 3mm double-bit insert. This GL66 Wallmount 1/4 Turn Latch Type 4X, M1200800300GSS item measures 1200x800x300mm with a material of SS 304, Brushed.
Features
- Removable hinges and double-bit latch insert
- Dimensions in millimeters
- Minimum-width body flange provides maximum body opening
- Pre-cut gland plate openings in the bottom of the enclosure with a seal to ensure protection
- External formed 90 degree body flange
- Door opens 210 degrees
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Type 316 stainless steel hinge pins
- Corner-formed doors are easily removed by pulling clip-style hinge pins
- Quarter-turn latches furnished with 3mm double-bit insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Grounding stud on the body
- Full-sized galvanized steel back panel included
- Bonding provision on the door
- Furnished hardware kit includes: gasketed gland plates and hardware, grounding hardware and sealing washers for wallmounting holes
- Installation instructions
- Three-point latching on enclosures 1000 mm and taller
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 800
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #3
- Weight
- 165
- Door Thickness
- 1.98
- Material
- Stainless Steel
- NEMA Rating
- 12 Indoor, dust-resistant
Height (H)1,200
Depth (D)300
Product FamilyGL66
Panel Size (D x E)45.47 x 29.72
Body Thickness1.98
IP RatingIP66
Size1200x800x300mm
