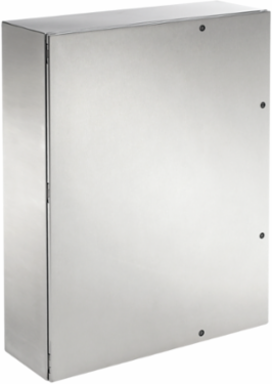

nVent Hoffman CSD363612SSR Concept Wallmount Enclosure 36x36x12 Inch, Stainless Steel, NEMA Type 12
- MPN: CSD363612SSR
- UPC: 783510148331
- PPN: HOF-CSD363612SSR
- UNSPSC: 39121324
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
For indoor or outdoor applications that require corrosion protection from chemicals and water. This Concept Wallmount Multi 1/4-Turn Latch 4X, CSD363612SSR item measures 36x36x12 in. with a material of SS 304, Brushed.
Features
- Seams continuously welded and ground smooth
- Minimum-width body flange provides maximum body opening
- Corner formed doors
- External formed 90-degree body flange
- Stainless steel quarter-turn latches with flush slotted insert provided on three sides of enclosure door
- Integral door alignment device to properly align door and gasket to body offset
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Stainless steel hidden hinges
- Doors are interchangeable and easily removed by pulling clip-style hinge pins
- Provision on door for thermoplastic data pocket
- Provision on door for optional doorstop kit
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel mounting nuts, panel grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 914 |
| Protection Rating | NEMA Type 12 |
| Finish | Brushed #4 |
| Door Thickness | 1.98 |
| Latch Quantity | 4 |
| Weight | 101 |
| Sub Brand | Concept |
| Size | 36.00x36.00x12.00 in |
| Height (H) | 914 |
|---|---|
| Depth (D) | 305 |
| Product Family | Concept |
| Body Thickness | 1.98 |
| Mounting (G x H) | 876 x 876 |
| IP Rating | IP66 |
| Latch Type | Quarter-Turn |
| Material | Stainless Steel |
| NEMA Rating | 12 Indoor, dust-resistant |
