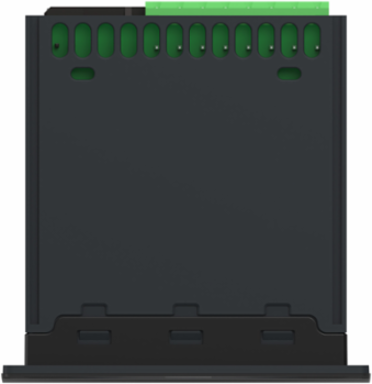

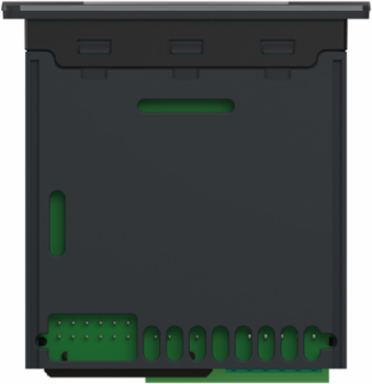

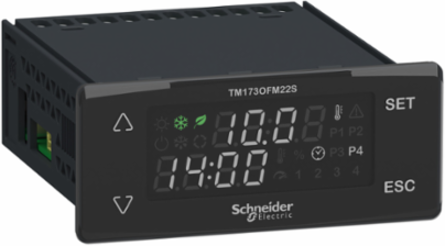

Schneider Electric TM173OFM22S Controller, Modicon M171/M172/M173, flush mounted, 22 IO, 2 RS485, solid state relay
- MPN: TM173OFM22S
- PPN: SCH-TM173OFM22S
CAD
$280.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

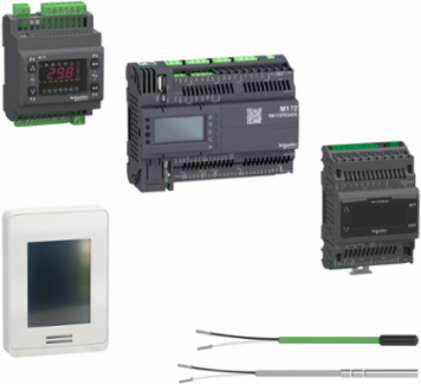

This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller embeds 6 digital inputs, 7 analog inputs, 5 digital outputs, and 4 analog outputs. It embeds 2 communication ports for RS-485 and one 1 USB-C bus port and has a built-in display. This programmable logic controller is designed to control Heat pumps/Chillers (up to two circuits), AHU, Process chillers, Pumping, and Boilers/Heaters. DIs are volt-free and pulse-reading (up to 2kHz), and AIs are NTC (b3435 - 10kW), pt1000, 4-20mA, 0-10V, 5V, and 10V. DOs are relay 5A SPST, and AOs are 0-10V/4-20mA, 0-10 V/PWM (10Hz to 2kHz). It measures 74mm wide, 60mm deep, 32mm high, and weighs 0.157kg. This controller is designed for HVAC and pumping applications. It is certified by CE, cURus (UL Recognized), CSA, EAC, RCM, RoHS China, and UKCA. It is compatible with remote displays, IO expansion modules, and Secure Interfaces. It is sold in a 1-piece package It is designed for panel mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC and pumping applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy

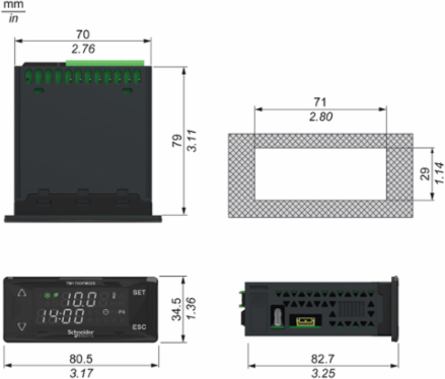

Depth82.7 mm
Important Information Attributes
- Measurement Accuracy
- NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °CNTC NK103 Beta 3977 110...137 °C +/- 1.9 °CNTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, PTC - 55...155 °C +/- 1.1 °C, Pt 1000 - 100...-50 °C +/- 5 °C, Pt 1000 - 50...100 °C +/- 1 °C, Pt 1000 100…400 °C +/- 5 °C, 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit0...20 mA, 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...10 V +/- 1 % of full scale +/- 1 digit, 0...5 V +/- 1 % of full scale +/- 1 digit, hOhm 0...1500 hOhm +/- 8.5 hOhm, daOhm 0...300 daOhm +/- 2.5 daOhm
- Certificate Agency
- EAC (pending), CE, cURus, CSA, RCM (pending)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4600590162482442, 0.5 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 16 kg CO2 eq., 15.676418631904022
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2310029EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2418
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Kit Identifier
- N

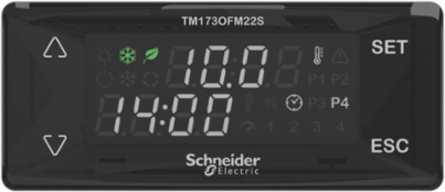

- Display Type
- LED
- Memory Type
- 1 MB flash380 kB RAM
- Overvoltage Category
- II
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Specific Application
- HVAC and pumping solution
- Realtime Clock
- built-in clock, clock drift <= 30 s/month at -20-65 °C
- Sensor Power Supply
- 5-5 V DC 50 mA supplied by the controller24-24 V DC 125 mA supplied by the controller
- Sustainable Packaging
- Yes
- Updatability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control HVAC/R applications, like chiller, heat pump or pumping station with up to 2 circuits and 4 compressors thanks to the integrated valve driver and 22 programmable IOs, and a 100% of the time for 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 525.6
- Energy Model - Installation [A5]
- Electricity origin
- Energy Model - End Of Life [C1-c4]
- Electricity origin
- Width Nominal
- 80.5 mm
- Input/Output Number
- 6 digital input5 digital output7 analog input4 analog output
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109160
Mounting Supportpanel mounting with accessory, DIN rail
Carbon Footprint Of The Distribution Phase [A4]0.055856584184394216, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.003368172902576019
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]238 kg CO2 eq., 238.3411809507395
Local Publishable Date2026-01-12
Stocking FlagY
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Product Contributes To Saved And Avoided EmissionsNo
Contacts Usagevolt-free contacts
Local Signalling1 LED (green) for USB pendrive download status

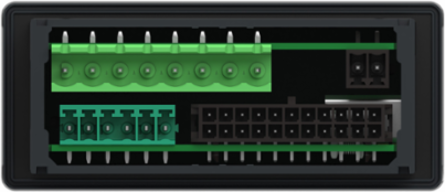

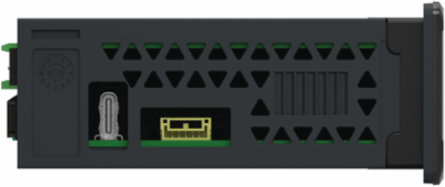

Number Of Port1 USB type C - screw terminal block2 RS4851 display port - screw terminal block Modbus serial link)1 communication module port - TTL connector
Power Consumption In W10 W 24 V AC/DC
Product Or Component Typeprogrammable controllers
Range Of ProductModicon M171/M172/M173
ReturnabilityNo
Software Versionv6.2.2
Total Lifecycle Carbon Footprint255 kg CO2 eq.
UpgradeabilityYes
Pep CodeENVPEP2310029_V3
Pep Verification Date2024-10-10
Psr VersionNo PSR
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Italy, IT
Energy Model - Use [B6]Electricity origin
Height Nominal34.5 mm
[Us] Rated Supply Voltage24 V +/- 10 % AC20...38 V DC
Number Of Inputs/Outputs22
Package Weight(Lbs)191.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-65 °C UL 60730-1, -20-65 °C UL 60730-1-20-65 °C UL 60730-1, -20-65 °C UL 60730-1, EN 60730-1, EN 60730-2-9
- Directives
- 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2310029EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2310029_V3
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-30-70 °C, -30-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint254.53688335597872
Environmental DisclosureENVPEP2310029_V3
Ip Degree Of ProtectionIP65 conforming to EN/IEC 60730
Packaging Made With Recycled CardboardYes
Relative Humidity5-95 % non-condensing
Pep Verification Date2024-10-10
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- programmable controllers
- Upgradeability
- Yes
Range Of ProductModicon M171/M172/M173
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Analogue Output Number
- 1 voltage/current 0…10 V or 4…20 mA, 3 voltage 0...10 V or PWM (10Hz...2 kHz)
- Discrete Output Current
- 3 A relay SPST0.5 A solid state, isolated
Discrete Output Number3 relay outputs SPST with same common, 2 solid state, isolated SPST with independent common
Input Attributes
- Analogue Input Type
- NTC 103AT-2 Beta 3435 temperature probe - 50...100 °C 0.1 °C 10 kOhm, Pt 1000 temperature probe - 50...400 °C 0.1 °C 2 kOhmvoltage 0...10 V 0.001 V > 10 kOhmvoltage 0...5 V 0.001 V 110 kOhmcurrent 4...20 mA 13 bits 100 Ohm, direct input > 10 kOhm
- Discrete Input Current
- 2.5 mA
- Discrete Input Number
- 6
- Input Impedance
- 20 kOhm
Analogue Input Number6 configurable by pair1 configurable
Discrete Input Logicsink or source (positive/negative)
Discrete Input Voltage24 V AC/DC
