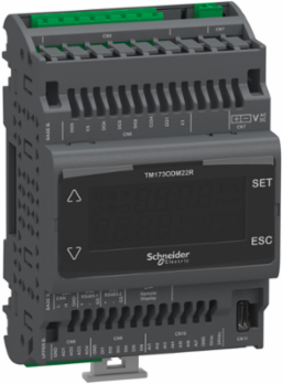

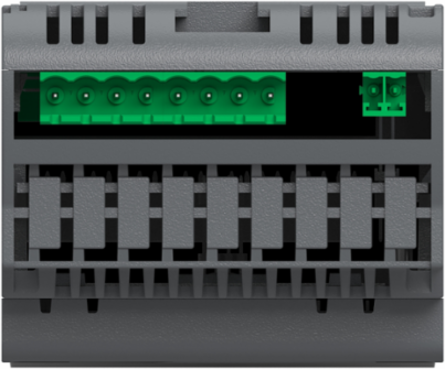

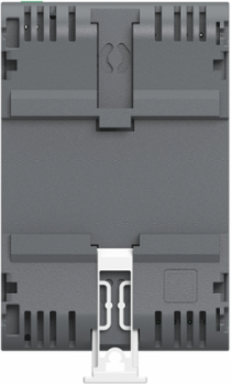

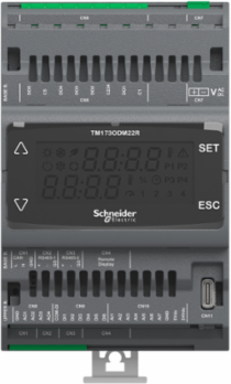

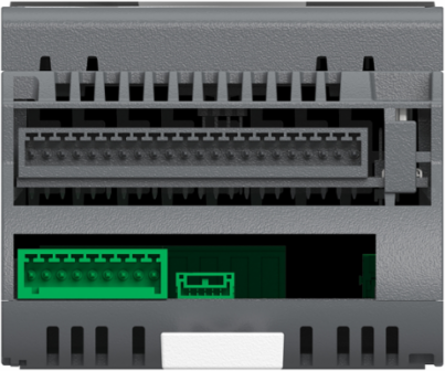

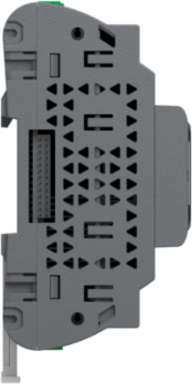

Schneider Electric TM173ODM22R Controller, Modicon M171/M172/M173, optimized display, 22 IO, 2 RS485
Schneider Electric TM173ODM22R Controller, Modicon M171/M172/M173, optimized display, 22 IO, 2 RS485
- MPN: TM173ODM22R
- PPN: SCH-TM173ODM22R
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$311.89/ EA
Description
This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 6 digital inputs, 7 analog inputs, 5 digital outputs, 4 analog outputs, and a display. This programmable controller embeds 2 communication ports for RS485 and one CAN expansion bus port. It is a programmable logic controller for HVAC and Pumping applications, equiped with a LCD display. DIs are volt-free, pulse reading (up to 2kHz), and AIs are NTC (b3435 - 10kW), PT1000, 0-10V, 4-20mA, 5V, 10V, and DIs. Dos are relay 3A SPST with the same common, and AOs are 0-10V/4-20mA, 0-10 V/PWM (10Hz...2kHz). It measures 72mm wide, 60mm deep, 110mm high, and weighs 0.182kg. This controller is designed for HVAC and pumping applications. It is certified by CE, CURus, CSA, RCM and EAC. It is compatible with IO expansion modules and Secure Interfaces It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
Specifications
Complementary Attributes
- Us Rated Supply Voltage
- 24 V +/- 10 % AC, 20...38 V DC
Important Information Attributes
- Measurement Accuracy
- NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C, NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C, NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, PTC - 55...155 °C +/- 1.1 °C, Pt 1000 - 100...-50 °C +/- 5 °C, Pt 1000 - 50...100 °C +/- 1 °C, Pt 1000 100…400 °C +/- 5 °C, 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit, 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...10 V +/- 1 % of full scale +/- 1 digit, 0...5 V +/- 1 % of full scale +/- 1 digit, hOhm 0...1500 hOhm +/- 8.5 hOhm, daOhm 0...300 daOhm +/- 2.5 daOhm
- Mounting Support
- panel mounting with accessory, DIN rail
- Sensor Power Supply
- 5-5 V DC 50 mA supplied by the controller, 24-24 V DC 125 mA supplied by the controller
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.6813145962017944, 0.7 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 23 kg CO2 eq., 23.215658106617397
- Certificate Agency
- EAC (pending), CE, cURus, CSA, RCM (pending)
- Local Publishable Date
- 2026-01-12
- Return Indicator
- Y
- Service Catalog Item
- Finished good
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2310029EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2404
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Contacts Usage
- volt-free contacts
- Local Signalling
- 1 LED (green) for USB pendrive download status
- Power Consumption In W
- 10 W 24 V AC/DC
- Product Or Component Type
- programmable controllers
- Range Of Product
- Modicon M171/M172/M173
- Returnability
- Yes
- Sustainable Packaging
- No
- Updatability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2310029_V3
- Pep Verification Date
- 2024-10-10
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Reference Lifetime In Y2
- 10
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; Italy, IT
- Energy Model Use B6 2
- Electricity origin
- Offer Owner Code
- 190786

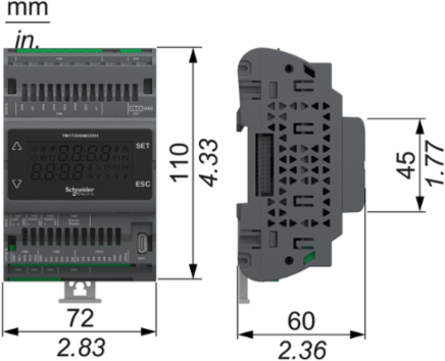

- Height Nominal
- 110 mm
Memory Type1 MB flash, 380 kB RAM
Number Of Port1 CAN port - screw terminal block, 1 USB type C, 2 RS485 - screw terminal block Modbus serial link), 1 display port - TTL connector, 1 communication module port
Carbon Footprint Of The Distribution Phase A40.08271961803758544, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50 kg CO2 eq., 0.004988023883914402
Carbon Footprint Of The Use Phase B2 B3 B4 B6238 kg CO2 eq., 238.3411809507395
Local Data StatusPublishable
Pre Comm Date2023-11-08
Stocking FlagN
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Display TypeLED
Overvoltage CategoryII
Product AvailabilityStock - Normally stocked in distribution facility
Product Specific ApplicationHVAC and pumping solution
Realtime Clockbuilt-in clock, clock drift <= 30 s/month at -20-65 °C
Software Versionv6.2.2
Total Lifecycle Carbon Footprint262 kg CO2 eq.
UpgradeabilityYes
Warranty In Months18
Database Version2024-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionTo control HVAC/R applications, like chiller, heat pump or pumping station with up to 2 circuits and 4 compressors thanks to the integrated valve driver and 22 programmable IOs, and a 100% of the time for 10 years.
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh525.6
Energy Model Installation A5 2Electricity origin
Energy Model End Of Life C1 C4 2Electricity origin
Pn1
Width Nominal72 mm
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-65 °C UL 60730-1, -20-65 °C UL 60730-1, -20-65 °C UL 60730-1, -20-65 °C UL 60730-1, EN 60730-1, EN 60730-2-9
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 262.3258612954802
- Circularity Profile
- ENVEOLI2310029EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % non-condensing
- Pep Verification Date
- 2024-10-10
- Psr Version
- No PSR
Directives2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Storage-30-70 °C
Environmental DisclosureENVPEP2310029_V3
Ip Degree Of ProtectionIP20 conforming to EN/IEC 60730
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2310029_V3
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- programmable controllers
- Upgradeability
- Yes
Range Of ProductModicon M171/M172/M173
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Analogue Output Number
- 1 voltage/current 0…10 V or 4…20 mA, 3 voltage 0...10 V or PWM (10Hz...2 kHz)
- Discrete Output Current
- 3 A relay SPST
Discrete Output Number3 relay outputs SPST with same common, 2 relay outputs SPST with independent common
Input Attributes
- Analogue Input Number
- 6 configurable by pair, 1 configurable
- Input Output Number
- 6 digital input, 5 digital output, 7 analog input, 4 analog output
- Discrete Input Logic
- sink or source (positive/negative)
- Discrete Input Voltage
- 24 V AC/DC
- Number Of Inputs Outputs
- 22
Analogue Input TypeNTC 103AT-2 Beta 3435 temperature probe - 50...100 °C 0.1 °C 10 kOhm, Pt 1000 temperature probe - 50...400 °C 0.1 °C 2 kOhm, voltage 0...10 V 0.001 V > 10 kOhm, voltage 0...5 V 0.001 V 110 kOhm, current 4...20 mA 13 bits 100 Ohm, direct input > 10 kOhm
Discrete Input Current2.5 mA
Discrete Input Number6
Input Impedance20 kOhm
Specifications
- Country of Origin
- Indonesia, Italy, Philippines
Depth60 mm
