Telemecanique Sensors XT218A1PCM12 Telemecanique Capacitive proximity sensors XT, cylindrical M18, plastic, Sn 8 mm, 12...24 V DC
Telemecanique Sensors XT218A1PCM12 Telemecanique Capacitive proximity sensors XT, cylindrical M18, plastic, Sn 8 mm, 12...24 V DC
- MPN: XT218A1PCM12
- PPN: TES-XT218A1PCM12
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$362.30/ EA
Description

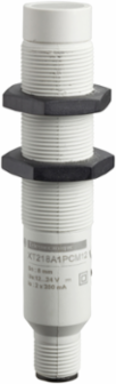

The XT offer is a range of capacitive proximity sensors, dedicated to the detection of insulated or conductive materials. These sensors are suitable for the detection of any object irrespective of material or conductivity. This sensor features a cylindrical plastic case, diameter 18mm, threaded M18 x 1 and a M12 connector. Advantages of this capacitive proximity sensor, no physical contact with the object to be detected, high operating rates, solid-state product, no moving parts. It is non flush mountable with a sensing distance of 8mm. 4-wire, 12V to 24V DC, with NO/NC function and a PNP output. Output state indication by a yellow LED. It is suitable for detection (presence or passage) of paper, cardboard, glass, etc. This sensor complies with CE and cETLus certifications, and with IEC 60947-5-2 and UL 61010-1 standards. A 90° fixing bracket XUZA118, to be ordered separatly, is available to facilitate the mounting of this sensor.
Specifications
Environment
- Product Certifications
- cULus
- Resistance To Electromagnetic Fields
- 3 V/m IEC 61000-4-3
- Vibration Resistance
- 10 gn 1 mm 10-55 Hz)IEC 60068-2-6
- Resistance To Electrostatic Discharge
- 4 kV contact IEC 61000-4-2 || 8 kV air IEC 61000-4-2
Ambient Air Temperature For Operation-10-60 °C
StandardsEN/IEC 60947-5-2
Shock Resistance30 gn 11 ms IEC 60068-2-27
Resistance To Fast Transients2 kV IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Iso Thread
- M18 x 1
- Status Led
- output state indication 1 LED yellow)
- Repeat Accuracy
- < 5 % Sr
- Maximum Switching Current
- 400 mA
- Marking
- CE
- Net Weight
- 0.075 kg
- Switching Frequency
- <= 200 Hz
- Maximum Delay Recovery
- 15 ms
- Maximum Delay First Up
- 100 ms
- Protection Type
- short-circuit protection
- Adjustment Zone
- 0-12 mm
Current Consumption< 25 mA
Setting-Upsensitivity by potentiometer
Maximum Voltage Drop<2.5 V closed)
Threaded Length47 mm
Length78 mm
Maximum Residual Current0.1 mA open state
Differential Travel< 1...20 % Sr
[Sa] Assured Operating Distance0-5.8 mm
Supply Voltage Limits10-30 V DC
Detection Facefrontal
Specifications
- Electrical Connection
- male connector M12, 4 pins
- Discrete Output Function
- 1 NC + 1 NO
- Type Of Output Signal
- discrete
- Sensor Name
- XT2
- Size
- 78 mm
- Ip Degree Of Protection
- IP67 double insulation IEC 60529
- [Sn] Nominal Sensing Distance
- 8 mm
- Sensor Type
- capacitive proximity sensor
- Sensor Design
- cylindrical M18
- Output Circuit Type
- DC
Discrete Output TypePNP
Maximum Delay Response15 ms
Range Of ProductTelemecanique Capacitive proximity sensors XT
Materialplastic
Wiring Technique4-wire
Body Typefixed
Product Specific Applicationdetection of insulated or conductive materials
Detector Flush Mounting Acceptancenon flush mountable
Enclosure Materialplastic
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
