nVent Hoffman

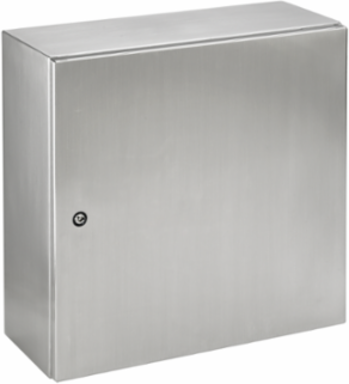

nVent Hoffman M400400210GSS GL66 Wallmount 1/4 Turn Latch Type 4X, 400x400x210mm, Brushed, SS 304

GL66 Wallmount 1/4 Turn Latch Type 4X, 400x400x210mm, Brushed, SS 304
  • MPN: M400400210GSS
  • UPC: 783510267865
  • PPN: HOF-M400400210GSS
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1817.85/ EA

Description

This GL66 stainless steel wallmount uses quarter turn latching with 3mm double-bit insert. This GL66 Wallmount 1/4 Turn Latch Type 4X, M400400210GSS item measures 400x400x210mm with a material of SS 304, Brushed.

Features

  • Removable hinges and double-bit latch insert
  • Dimensions in millimeters
  • Minimum-width body flange provides maximum body opening
  • Pre-cut gland plate openings in the bottom of the enclosure with a seal to ensure protection
  • External formed 90 degree body flange
  • Door opens 210 degrees
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Type 316 stainless steel hinge pins
  • Corner-formed doors are easily removed by pulling clip-style hinge pins
  • Quarter-turn latches furnished with 3mm double-bit insert
  • Seamless foam-in-place gasket
  • Self-grounding latch system with double seal
  • Grounding stud on the body
  • Full-sized galvanized steel back panel included
  • Bonding provision on the door
  • Furnished hardware kit includes: gasketed gland plates and hardware, grounding hardware and sealing washers for wallmounting holes
  • Installation instructions
  • Three-point latching on enclosures 1000 mm and taller

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
400
Protection Rating
NEMA Type 12
Finish
Brushed #3
NEMA Rating
12 Indoor, dust-resistant
Body Thickness
1.59
IP Rating
IP66
Size
400x400x210mm
Height (H)400
Depth (D)210
Product FamilyGL66
Panel Size (D x E)13.98 x 10.04
Weight25
Door Thickness1.59
MaterialStainless Steel
