Lutron

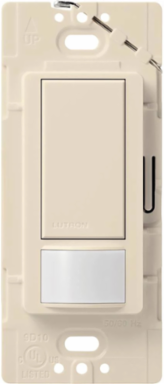

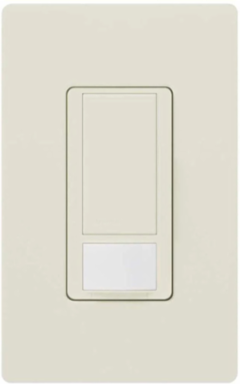

Lutron MS-VPS2-LA Maestro 2A Vacancy Sensor Switch, 180-Degree Coverage, Light Almond Finish

Maestro 2A Vacancy Sensor Switch, 180-Degree Coverage, Light Almond Finish
Maestro 2A Vacancy Sensor Switch, 180-Degree Coverage, Light Almond Finish
Maestro 2A Vacancy Sensor Switch, 180-Degree Coverage, Light Almond Finish
Maestro 2A Vacancy Sensor Switch, 180-Degree Coverage, Light Almond Finish
Maestro 2A Vacancy Sensor Switch, 180-Degree Coverage, Light Almond Finish
Maestro 2A Vacancy Sensor Switch, 180-Degree Coverage, Light Almond Finish
  • MPN: MS-VPS2-LA
  • UPC: 027557982955
  • PPN: LUT-MS-VPS2-LA
  • UNSPSC: 39122236

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$31.02/ EA

Description

The Lutron Maestro Motion Sensor Switch (vacancy only) features Lutron’s advanced motion sensing technology to automatically turn the lights off, or manually toggle the lights with the tap switch. This Vacancy Sensor Switch is rated up to 2A for any lighting type and is single pole only. The passive infrared (PIR) sensor, covered by a tamper resistant lens, detects heat from occupants moving and has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage). Equipped with smart ambient light detection (ALD), you can customize your sensor to detect daylight, so lights don't turn on when enough natural light is present in the room. Unlike other manufacturers, Lutron sensors use Cross Correlation Technology (XCT) to also detect fine motion, such as typing at a desk or reading a book – ensuring lights won’t turn off inadvertently when you’re still in the room. Lutron sensors also have an adjustable timeout (1, 5, 15 or 30 minutes) to control how long the lights stay on after leaving the room. Switch the sensor to vacancy mode to meet Title 24 requirements: lights only turn on with a manual press of the tap switch but automatically turn off if the sensor no longer detects motion. The sensitivity of the PIR sensor can also be changed so it only detects larger motion Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Features

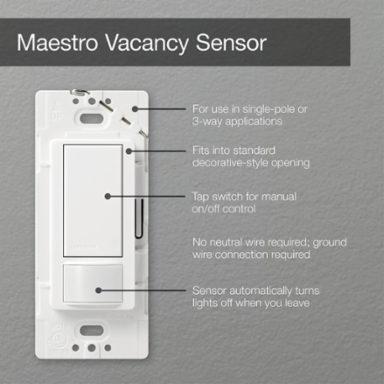

  • Includes (1) Lutron Maestro 2A Motion Sensor Switch, Vacancy Only; Gloss Finish
  • Rated to work with up to 2A lighting; 120V
  • Single Pole only
  • Wire-Lead installation; Ground or Neutral Required
  • Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
  • 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
  • Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough natural light is present in the room
  • Easy button programming to customize timeout, sensor mode, or sensitivity
  • Complies with Title 20/24 Section 110.9 for “automatic shutoff”
  • Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Combines a Maestro switch with a passive infrared occupancy sensor
  • Detects the heat from occupants moving within an area to determine whether the space is occupied
  • Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly
  • Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection
  • 180 degree sensor field-of-view
  • Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
  • Meets CA Title 24 requirements
  • Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment
  • Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan
  • Ground wire required.

Specifications

Specifications

Body
Plastic
Operating Temperature, Maximum
104 F
Sensing Range, Maximum
900
Application
Lighting Control
Load
2
Enclosure
Plastic
Sensor
Passive infrared motion detection with dependable Lutron XCT technology
Mounting
Wallbox
Aesthetic Finish
Glossy
Operating Temperature
32 to 104 F
Family ColorBeige
Operating Temperature, Minimum32 F
Sensing Range, Minimum400
Decorative ColorLight Almond
TypeVacancy sensor switch, single-pole
Environmental Conditions0 to 90% humidity, non-condensing. Indoor use only.
Supply Voltage120
Sensing Range900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
FinishGloss

Downloads
