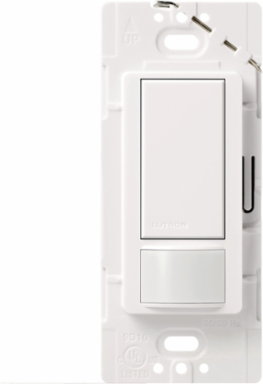

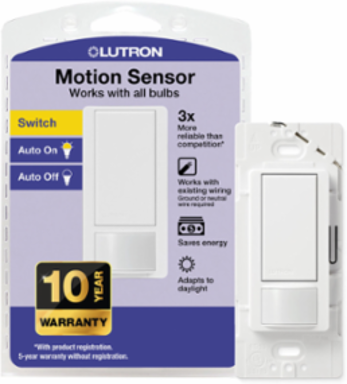

Lutron MS-OPS2H-WH-C Maestro 2A Motion Sensor Switch, 180-Degree Field of View, White











Lutron MS-OPS2H-WH-C Maestro 2A Motion Sensor Switch, 180-Degree Field of View, White
- MPN: MS-OPS2H-WH-C
- UPC: 027557983211
- PPN: LUT-MS-OPS2H-WH-C
- UNSPSC: 39122236
Spec sheet
Loading compare button...
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$31.02/ EA
Description
Features
- Includes (1) Lutron Maestro 2A Motion Sensor Switch; Gloss Finish, Clamshell Packaging
- Rated to work with up to 2A lighting; 120V
- Single Pole only

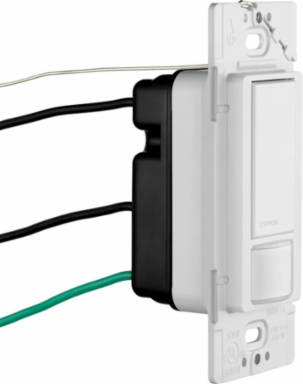

- Wire-Lead installation; Ground or Neutral Required
- Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
- 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
- Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough natural light is present in the room
- Easy button programming to customize timeout, sensor mode, or sensitivity
- Complies with Title 20/24 Section 110.9 for “automatic shutoff”
- Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)

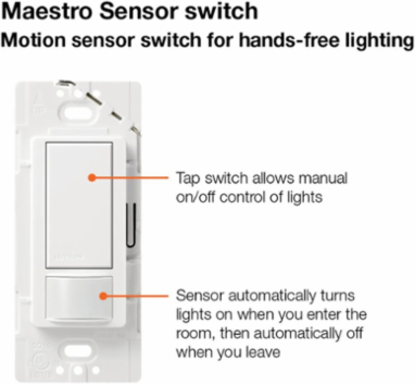

- Combines a Maestro switch with a passive infrared occupancy sensor
- Detects the heat from occupants moving within an area to determine whether the space is occupied
- Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly
- Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection
- 180 degree sensor field-of-view
- Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
- Can be set to auto-on/auto-off or manual-on/auto-off
- Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment
- Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan
- Ground wire required.
Specifications
Specifications
- Application
- Lighting Control
- Decorative Color
- White
- Operating Temperature, Maximum
- 104 F
- Load
- 2
- Supply Voltage
- 120
- Environmental Conditions
- 0 to 90% humidity, non-condensing. Indoor use only.
- Operating Temperature, Minimum
- 32 F
- Mounting
- Wallbox
- Aesthetic Finish
- Glossy
- Operating Temperature
- 32 to 104 F
