Lutron

Lutron MSC-S8AM-BI Maestro Switch - Satin Finish, Incandescent/Halogen, Magnetic Low-Voltage, Electronic Low-Voltage, Fluorescent, Multi-location/single-pole, 120V/8A in biscuit

Maestro Switch - Satin Finish, Incandescent/Halogen, Magnetic Low-Voltage, Electronic Low-Voltage, Fluorescent, Multi-location/single-pole, 120V/8A in biscuit
Maestro Switch - Satin Finish, Incandescent/Halogen, Magnetic Low-Voltage, Electronic Low-Voltage, Fluorescent, Multi-location/single-pole, 120V/8A in biscuit
Maestro Switch - Satin Finish, Incandescent/Halogen, Magnetic Low-Voltage, Electronic Low-Voltage, Fluorescent, Multi-location/single-pole, 120V/8A in biscuit
Maestro Switch - Satin Finish, Incandescent/Halogen, Magnetic Low-Voltage, Electronic Low-Voltage, Fluorescent, Multi-location/single-pole, 120V/8A in biscuit
  • MPN: MSC-S8AM-BI
  • UPC: 027557082952
  • PPN: LUT-MSC-S8AM-BI
  • UNSPSC: 39122216

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$64.50/ EA

Description

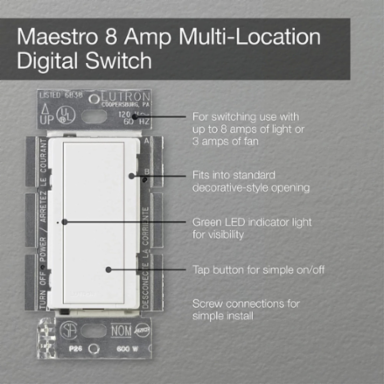

The Lutron Maestro 8A Electronic Switch is rated to work with up to 8A of lighting loads, or 3A general purpose fans. The Maestro 8A Switch requires a neutral and is compatible with multi-location switching applications; Lutron Accessory switches are required (MA-AS/MSC-AS). Use up to 9 Lutron Accessory switches with one Lutron Maestro Electronic Switch; existing 3-way switch are not compatible. The Maestro Companion switches sync with the programming of the main Maestro Switch. The Maestro 8A switch completes any project and matches the Maestro aesthetic for areas that don’t require a Maestro dimmer or sensor. Press anywhere on the tap switch to toggle between ON/OFF. A soft green LED indicator light glows when load is OFF and brighten when load is ON. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Features

  • Includes (1) Lutron Maestro 8A Electronic Switch; Satin Finish
  • Rated for up to 8A lighting or 3A general purpose fans
  • Neutral required; 120V
  • Screw Terminal or Push-in installation
  • Single Pole/ Multi-location compatible
  • Accessory switch (MA-AS/MSC-AS) required for 3-way/multi-location applications; traditional 3-way switches are not compatible
  • Use up to 9 companion switches (MA-AS/MSC-AS) with one Lutron Maestro 8A switch
  • Companion switches (MA-AS/MSC-AS) sync with programming from main Maestro switch
  • Tap anywhere to toggle lights/fan ON/OFF
  • Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately
  • Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans
  • For multi-location switching, use one Maestro multi-location switch with Maestro companion switches
  • Tap switch on/off

Specifications

Specifications

Actuator
Tapswitch
Application
Lighting Control
Contact Configuration
N-O
Decorative Color
Biscuit
Family Color
Beige
Operating Temperature, Minimum
32 F
Wattage
960 W
Material
Metal;Plastic
Model
Electronic switch, multi-location/single-pole
Surface Finishing
Satin
Color
Biscuit
Operating Temperature
32 to 104 F
Type
Electronic switch, multi-location/single-pole
Amperage Rating8 A
ConnectionScrewed Terminal
Contact Rating8
EnclosurePlastic
Operating Temperature, Maximum104 F
Voltage Rating120
InsulationPlastic
Material QualityPlastic/Metal
MountingWallbox
Aesthetic FinishSatin
FinishSatin

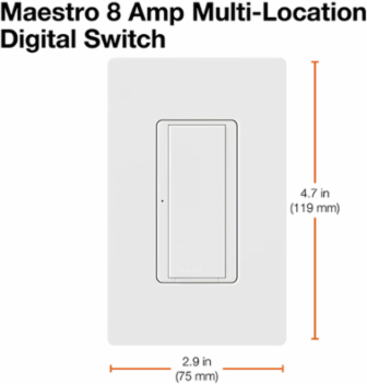

Size4.69 x 2.94;119 x 75 in;mm

Downloads
