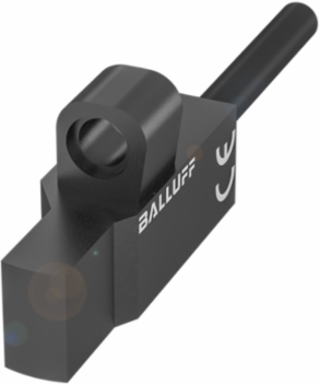

Balluff BMF 103K-PS-C-2A-PU-02 Magnetic Field Sensor, 9 x 4.8 x 16 mm, PNP NO, IP67, 30000 Hz
Balluff BMF 103K-PS-C-2A-PU-02 Magnetic Field Sensor, 9 x 4.8 x 16 mm, PNP NO, IP67, 30000 Hz
- MPN: BMF 103K-PS-C-2A-PU-02
- PPN: BAL-BMF001E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$109.98/ EA
Description
The Balluff magnetic field sensor is a compact and highly efficient device, measuring just 9 x 4.8 x 16 mm, making it ideal for applications where space is at a premium. Designed with a PNP normally open output and a remarkable switching frequency of 30,000 Hz, this sensor ensures quick and reliable detection, particularly suited for short-stroke cylinders. With an IP67 rating, it is built to withstand harsh environments, while its robust PBT housing material and a temperature range of -25 to 85 °C guarantee durability and performance in various conditions. Additionally, the sensor is equipped with a 2-meter PUR cable for flexible installation, making it a versatile choice for industrial automation needs.
Specifications
Specifications
- Country of Origin
- Hungary
- Principle of operation
- Magnetic field sensor
- Application
- Optimized response path especially suited for short-stroke cylinders.
- Housing material
- PBT
- Switching frequency
- 30000 Hz
- Ambient temperature
- -25...85 °C
- Approval/Conformity
- cULus; CE; UKCA; WEEE
Dimension9 x 4.8 x 16 mm
CablePUR, 2 m
Fastening detailMounting bracket BMF 103-HW*
Switching outputPNP Normally open (NO)
Operating voltage Ub10...30 VDC
IP rating per IEC 60529IP67
