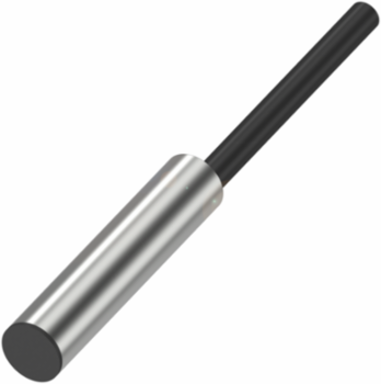

Balluff BMF 07M-PS-C-2-KPU-02 Tubular Magnetic Field Sensor, Ø 6.5 x 30.5 mm, IP67, 10-30 VDC
Balluff BMF 07M-PS-C-2-KPU-02 Tubular Magnetic Field Sensor, Ø 6.5 x 30.5 mm, IP67, 10-30 VDC
- MPN: BMF 07M-PS-C-2-KPU-02
- PPN: BAL-BMF000E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$166.82/ EA
Description
The Balluff tubular magnetic field sensor is a robust and reliable solution designed for precision applications. With a compact size of Ø 6.5 x 30.5 mm and an impressive IP67 rating, this sensor is built to withstand harsh environments, operating effectively within a temperature range of -25 to 85 °C. It operates on a voltage range of 10-30 VDC and features a PNP normally open switching output, ensuring quick response times with a switching frequency of up to 10,000 Hz. Crafted from nickel-plated brass and equipped with a durable 2-meter PUR cable, this sensor not only meets various international standards such as CE and UKCA but also delivers exceptional performance in industrial settings.
Specifications
Specifications
- Country of Origin
- Hungary
- Principle of operation
- Magnetic field sensor
- Housing material
- Brass, nickel-plated
- Switching frequency
- 10000 Hz
- Ambient temperature
- -25...85 °C
- Approval/Conformity
- CE; UKCA; cULus; WEEE
DimensionØ 6.5 x 30.5 mm
CablePUR, 2 m
Switching outputPNP Normally open (NO)
Operating voltage Ub10...30 VDC
IP rating per IEC 60529IP67
Downloads
