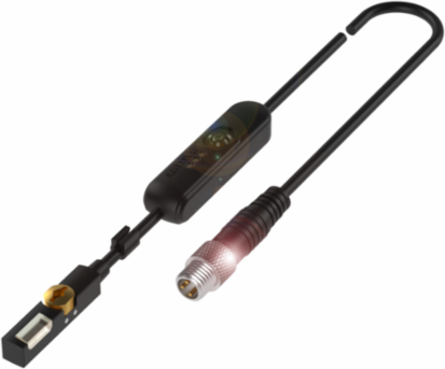

Balluff BMF 235K-H-PI-C-A8-S75-00,3 Magnetic Field Sensor for T-Slot, 23.5x6.2x5 mm, IO-Link 1.1
- MPN: BMF 235K-H-PI-C-A8-S75-00,3
- PPN: BAL-BMF00LA
CAD
$224.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Magnetic Field Sensor for T-Slot, 23.5x6.2x5 mm, IO-Link 1.1
Documentation & Downloads
Specifications
Additional
| Operating voltage | 10...30 VDC |
|---|---|
| Dimension | 23.5 x 6.2 x 5 mm |
| Housing material | PA 12 |
| Compliance | CE, cULus, EAC, WEEE, IO-Link |
| Teach function | 8 switching points |
| Principle of operation | Magnetic field sensor |
| Country of Origin | Hungary |
| Ambient temperature | -25...80 0C |
|---|---|
| Connection | M8x1-Male, 4-pin |
| IP rating | IP67 |
| Interface | IO-Link 1.1 |
| Cable | PUR, 0.3 m |
| Fastening detail | Can be installed in T-slot from above |
