Leviton 18D21-UG 18 Series Male Plug, #2 - 2/0 AWG, Single Set Screw Termination

18 Series Male Plug, #2 - 2/0 AWG, Single Set Screw Termination

Leviton 18D21-UG 18 Series Male Plug, #2 - 2/0 AWG, Single Set Screw Termination

MPN: 18D21-UG
UPC: 078477746707
PPN: LEV-18D21-UG

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$65.79/ EA

Loading add to cart quantity...

Description

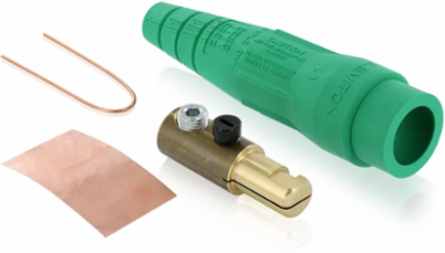

18 Series Ball Nose Cam-Type Male Plug, Contact & Insulator, Detachable, #2 - 2/0 AWG, Single Set Screw Termination, 300 Amp Max, 600VAC/DC, Type 3R When Mated, Green

Features

Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
Single or double set screw termination
NEMA 3R rated for outdoor use when mated
UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications

Specifications

Product Features

Cable Range: 2-2/0 AWG

Component: Complete

Contact Cat. No.: 18D21-C

Insulator Cat. No.: 18SDM-22E

Max. Voltage: 600 Volt

Standards and Certifications: UL/CSA

Warranty: NA

ColorGreen

Connection TypeSingle Set Screw

GenderMale

Max. Amperage300 Amp

Series18

Style NameDetachable

Specifications

Country of Origin: Mexico

RoHS CompliantFalse
