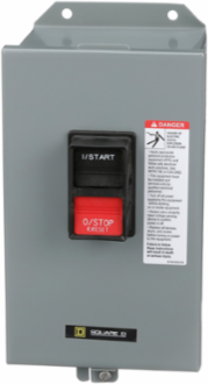

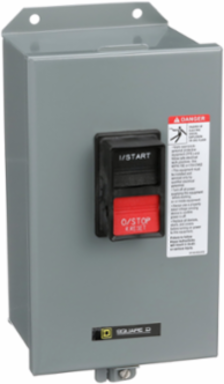

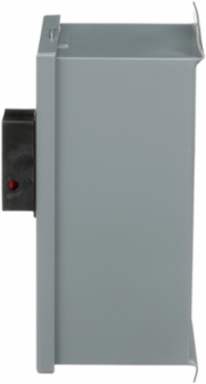

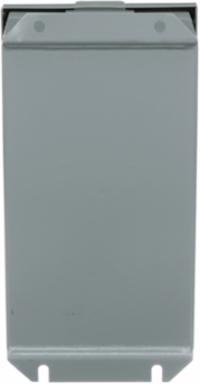

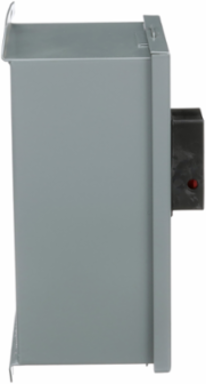

Square D 2510MBA1 Manual Motor Starter, NEMA Size M-0, 2 Pole, 2 HP, 600 VAC, NEMA 12 Enclosure

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-0 two pole starter is rated for 1 HP at 115 VAC and 2 HP at 230 VAC single phase. A melting alloy thermal unit is used with this manual starter to sense over current conditions. This thermal unit is ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 12 dusttight and driptight industrial use enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 10.92 inches tall, 5.78 inches wide and 5.76 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.
