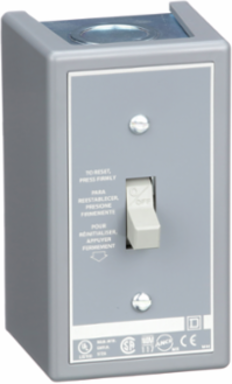

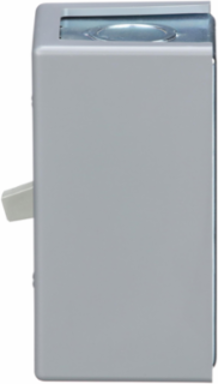

Square D 2510FG2 Manual Starter 1HP 277VAC 16A NEMA 1 Toggle Switch
- MPN: 2510FG2
- UPC: 785901553953
- PPN: SCH-2510FG2
CAD
$180.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

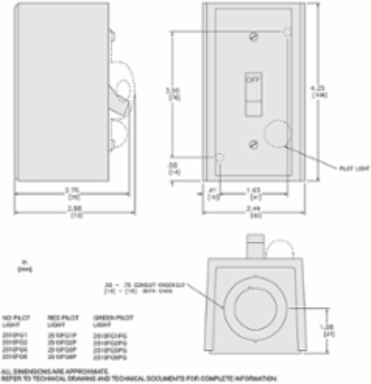

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 2 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP at 115 VAC, 2 HP at 230 VAC, 1 HP at 277 VAC and 0.75 HP at 115 and 230 VDC ratings. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.88 inches deep. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.
Features
- Part of the dependable Square D Type F product family, this 2-pole manual starter is engineered to deliver reliable full-voltage on/off control for single-phase fractional horsepower motors. It carries a continuous current rating of 16 Amps at up to 277V AC or 230V DC, making it ideal for managing small industrial or commercial exhaust fans, localized fluid pumps, and material handling conveyors up to 1 HP at 115V AC and 2 HP at 230V AC.

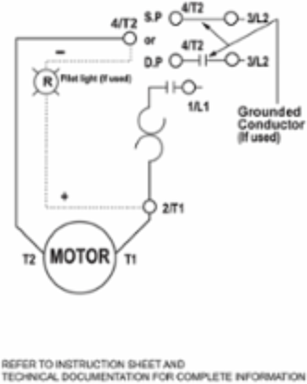

- This manual starter features a dedicated melting alloy thermal overload block positioned between the incoming line and the load. It uses one Type F standard thermal unit (ordered separately to match the specific motor full-load current) to continuously track electrical heat buildup. If a mechanical jam forces a prolonged overcurrent condition, the melting alloy block releases the spring-loaded mechanism, dropping the motor off the line before insulation damage occurs.
- Housed in a rugged, surface-mounting NEMA Type 1 general-purpose sheet steel enclosure, this starter is built strictly for indoor utility spaces. The wrap-around metal cover protects internal electrical components from accidental physical impacts, light airborne dust, and personnel contact, making it a perfect fit for dry, indoor commercial HVAC equipment closets, mechanical rooms, and light manufacturing workshops.

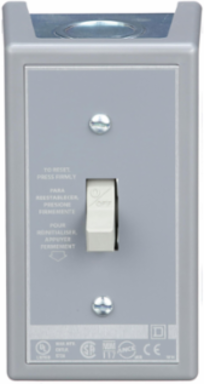

- This model features a classic, heavy-duty toggle switch actuator that provides distinct mechanical confirmation of contact state. The over-center, trip-free toggle mechanism cannot be forced closed against a persistent thermal overload fault condition, ensuring that the internal contacts remain open and completely isolated until the internal thermal unit has cooled sufficiently and the toggle is manually reset.

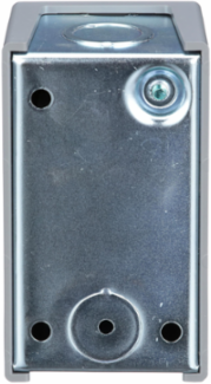

- The NEMA 1 enclosure base features pre-formed conduit knockouts positioned at both the top and bottom to facilitate rapid wire pulls. Equipped with large, accessible screw clamp terminals that safely anchor solid or stranded copper conductors, this starter layout simplifies field installations and ensures a high-torque, vibration-resistant termination that minimizes local resistance.
- Carrying formal CSA certification and a complete UL Listing, this Schneider Electric device satisfies all stringent safety codes across Canada and the United States. Its standardized manual starting blueprint ensures a predictable, cost-effective local motor management interface, giving independent municipal and provincial inspectors a clear, straightforward pathway to grant final site sign-offs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth2.75 in
Complementary Attributes
- Maximum Horse Power Rating
- 1 hp 115 V AC, 1 hp 277 V AC0.75 hp 115 V DC, 0.75 hp 230 V DC, 2 hp 230 V AC
Line Rated Current16 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL listed file E42243 CCN NLRV, CSA LR25490 class 3211 05
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6 kg CO2 eq., 0.5594147383011128
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.0999842752044597
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- 14 AWG...12 AWG copper
- Control Type
- toggle switch
- Energy Efficiency Optimized
- False
- Motor Starter Type
- non reversing
- Phase
- 1 phase
- Product Or Component Type
- Single Unit Manual Starter
- Reset
- manual
- Software Version
- v6.2.5-6
- Thermal Overload Type
- melting alloy
- Pep Code
- ENVPEP2507018EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 4.25 in
- [Ue] Rated Operational Voltage
- 277 V AC230 V DC
- Package Weight(Lbs)
- 358.338 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.10355523598430062, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.04287306753068179, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]9 kg CO2 eq., 8.860743617797104
Local Publishable Date2026-03-25
Stocking FlagN
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Cable Entry0.5" and 0.75" knock-outs (top and bottom)
Electrical Connectionscrew clamp terminals
Local Signallingno indicator
Number Of Poles2P
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductF
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint12 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionWhen a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %74
Width Nominal2.44 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536504000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 11.666570934817658
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2507018EN
Nema Degree Of ProtectionNEMA 1 Plastic standard size
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2507018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- F
Product Or Component TypeSingle Unit Manual Starter
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
