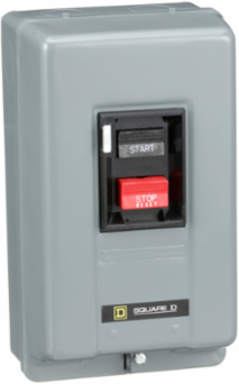

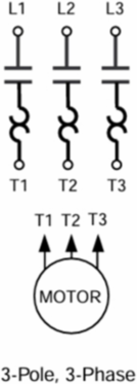

Square D 2510MBG2 Manual Motor Starter 5HP, 3 Pole, NEMA 1, Push-Button, 600V AC
- MPN: 2510MBG2
- UPC: 785901792536
- PPN: SCH-2510MBG2
CAD
$504.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-0 three pole starter is rated for 3 HP at 200 to 230 VAC and 5 HP at 380 to 575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. The thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 1 general purpose surface mount enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 8.63 inches tall, 5.00 inches wide and 4.13 inches deep. This device weighs 4.14 lbs. 2510M integral horsepower starters are UL listed and CSA certified.
Features
- Housed in a rugged, powder-coated sheet steel wrap, the 2510MBG2 is specifically designed to shield internal components from dust and light physical impacts in dry environments. This durable construction ensures a long service life in machine shops and utility rooms while providing a professional, flush-mounting or surface-mounting aesthetic that satisfies strict facility requirements.
- Featuring a high-visibility, heavy-duty toggle switch, this starter provides a simple "On/Off" interface that requires no additional control transformers or magnetic contactors. This straightforward mechanical design allows operators to quickly engage or isolate equipment like fans, pumps, and small conveyors with a positive, tactile response they can feel even through work gloves.
- The 2510MBG2 utilizes Schneider Electric's reliable "melting alloy" thermal units (sold separately) to provide precise overcurrent protection. By sensing the heat generated by the motor's current, the starter automatically trips before the windings sustain permanent damage, preventing expensive motor replacements and reducing unplanned downtime in your production line.
- Designed with the commercial electrician in mind, the enclosure features ample interior space and clearly marked terminals for rapid conductor routing. By simplifying the landing of wires and providing easy access to the heater element compartment, it significantly reduces labor time and simplifies routine safety inspections.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth4.13 in
Complementary Attributes
- Maximum Horse Power Rating
- 3-3 hp 200...230 V AC, 3 phase5-5 hp 380...575 V AC, 3 phase
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA LR60905 class 3211 05, UL listed file E42243 CCN NLRV
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 3 kg CO2 eq., 2.928693158562272
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 11 kg CO2 eq., 10.99400705558318
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- 14 AWG...8 AWG copper
- Energy Efficiency Optimized
- False
- Motor Starter Type
- non reversing
- Number Of Thermal Units Required
- 3
- Product Or Component Type
- Manual Starter
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 21 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 74
- Width Nominal
- 5 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536504000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.5421407238600091, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2244525411414894, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]6 kg CO2 eq., 6.282128775899118
Local Publishable Date2026-03-25
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Electrical Connectionpressure wire clamp
Local Signallingno indicator
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductM
Software Versionv6.2.5-6
Thermal Overload Typemelting alloy
Pep CodeENVPEP2507018EN
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal8.63 in
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)1.860 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 20.97142225504607
- Eu Rohs Directive
- Compliant
- Nema Size
- M-0
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2507018EN
Nema Degree Of ProtectionNEMA 1 painted sheet steel
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2507018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- Manual Starter
Range Of ProductM
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
