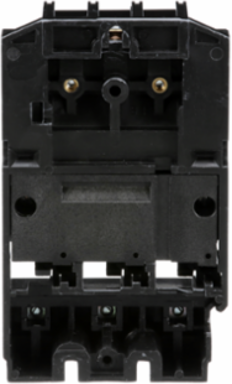

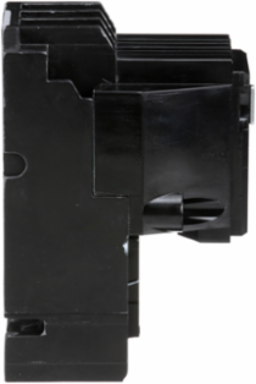

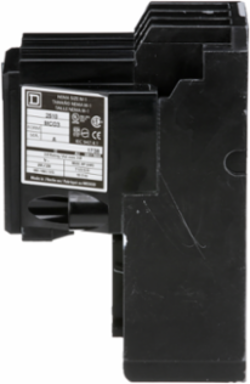

Square D 2510MCO3 Manual Motor Starter 3 Pole 10HP 600VAC Open
- MPN: 2510MCO3
- UPC: 785901792208
- PPN: SCH-2510MCO3
CAD
$517.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

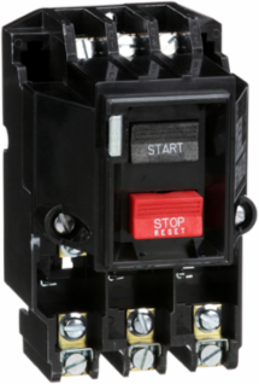

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-1 three pole starter is rated for 7.5 HP at 200-230 VAC and 10 HP at 380-575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. These thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. This manual motor starter is not supplied with an enclosure. This manual starter is 5.72 inches tall, 3.50 inches wide and 4.03 inches deep. This device weighs 2.20 lbs. 2510M integral horsepower starters are UL listed and CSA certified.
Features
- This Square D by Schneider Electric integral horsepower manual starter is engineered for demanding industrial environments, supporting up to 600 VAC. It features a NEMA Size M-1 rating capable of safely driving 3-phase motors up to 7.5 HP at 200 230 VAC and up to 10 HP at 380 575 VAC. This ensures reliable, direct-on-line (DOL) across-the-line starting for heavy-duty commercial fans, conveyors, pumps, and machine tools without risking premature component burnout.
- Engineered with rugged pressure wire clamp terminals, this starter securely accepts a wide wire range of 14 AWG to 8 AWG copper wire, simplifying your field terminations and guaranteeing high-conductivity connections. The physical dimensions measuring 5.72 inches high, 3.50 inches wide, and 4.03 inches deep allow it to fit comfortably into tight retrofits where space on the backplate is at a premium.
- The 2510MCO3 starter is fully UL Listed (File E42243) and CSA Certified (LR60905, Class 3211 05). This certification simplifies code compliance during electrical inspections and guarantees that the device meets rigorous manufacturing benchmarks for industrial-grade arc suppression and structural integrity.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth4.03 in
Complementary Attributes
- Maximum Horse Power Rating
- 7.5-7.5 hp 200...230 V AC, 3 phase10-10 hp 380...575 V AC, 3 phase
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA LR60905 class 3211 05, UL listed file E42243 CCN NLRV
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 1.5578618125349726
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 6 kg CO2 eq., 5.848049908731646
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- 14 AWG...8 AWG copper
- Energy Efficiency Optimized
- False
- Motor Starter Type
- non reversing
- Number Of Thermal Units Required
- 3
- Product Or Component Type
- Manual Starter
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 14 kg CO2 eq.
- Pep Code
- ENVPEP2507018EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 5.72 in
- [Ue] Rated Operational Voltage
- 600 V AC
- Package Weight(Lbs)
- 997.902 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.288381296706477, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.11939319813975191, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]6 kg CO2 eq., 6.282128775899118
Local Publishable Date2026-03-25
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Electrical Connectionpressure wire clamp
Local Signallingno indicator

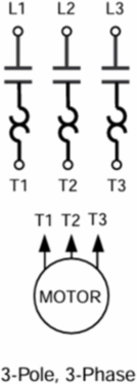

Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductM
Software Versionv6.2.5-6
Thermal Overload Typemelting alloy
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionWhen a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %74
Width Nominal3.5 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536504000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 14.095814992011967
- Eu Rohs Directive
- Compliant
- Nema Size
- M-1
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2507018EN
Nema Degree Of Protectionnot rated (open device)
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2507018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- Manual Starter
Range Of ProductM
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
