Square D 2510KG1A Manual Motor Switch 30A 2 Pole 3HP 575VAC Toggle NEMA 1
- MPN: 2510KG1A
- UPC: 785901554486
- PPN: SCH-2510KG1A
CAD
$252.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

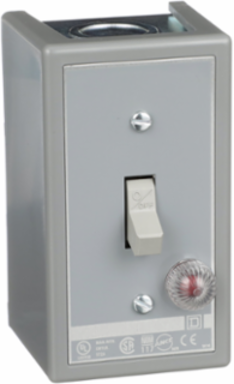

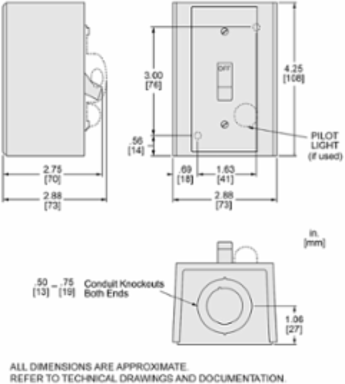

2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switches is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has a 115 VAC red pilot light indicator. This NEMA 1 general purpose enclosure is a surface mounting enclosure. The enclosure has has a 0.5 and 0.75 knockout on the top and bottom. The enclosure is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. This device is UL Listed and CSA certified.
Features
- Engineered for demanding commercial and industrial environments, this Class 2510 Type K manual motor switch supports up to 30 Amps of continuous current. It effortlessly manages single-phase motor loads up to 2 HP at 115/230 VAC and up to 3 HP at 460/575 VAC, eliminating configuration guesswork and providing robust manual on/off control for small fractional horsepower machinery, exhaust fans, and pumps.
- Designed to reduce installation time and simplify field wiring, the heavy-duty screw clamp terminals firmly accept 14 AWG down to thick 10 AWG copper conductors for maximum electrical contact. The compact painted sheet steel enclosure features integrated 0.5-inch and 0.75-inch knockouts on both the top and bottom, giving you flexible conduit entry options to effortlessly match your existing commercial layout.
- To protect operators and optimize workflow monitoring, this model comes equipped with a built-in, factory-installed red 115 VAC pilot light indicator. The highly visible neon light lets maintenance personnel verify running status from across the plant floor, mitigating safety risks and addressing common workspace safety objections.
- Wrapped in a rugged, surface-mounted NEMA 1 general-purpose enclosure, this motor control switch is optimized for clean, indoor environments such as machine shops, commercial kitchens, and utility rooms. Its space-saving design measures just 4.25 inches high by 2.44 inches wide, making it an ideal choice for crowded control panels or tight wall installations where space is at a premium.
- This is a non-reversing, toggle-operated manual switch specifically built for applications where motor overload protection is either not required or is handled separately by downstream circuit breakers or inline thermal elements.
- You can specify and install this Square D industrial switch with complete confidence, as it is fully UL Listed (File E42243) and CSA Certified. These authoritative certifications ensure the unit complies with stringent Canadian and international commercial safety regulations, eliminating municipal inspection friction and ensuring reliable, long-term performance.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 2.75 in |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 2 hp 115 V DC, 2 hp 115 V AC, 2 hp 230 V AC3 hp 460 V AC, 3 hp 575 V AC, 1 hp 90 V DC, 1.5 hp 230 V DC |
|---|
| Line Rated Current | 30 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL listed file E42243 CCN NLRV, CSA LR25490 class 3211 05 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.6 kg CO2 eq., 0.6019744573249531 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 2 kg CO2 eq., 2.259748998205157 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Awg Gauge | 14 AWG...10 AWG copper |
| Control Type | toggle |
| Energy Efficiency Optimized | False |
| Motor Starter Type | non reversing |
| Phase | 1 phase |
| Product Or Component Type | Single Unit Manual Switch |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2507018EN |
| Pep Verification Date | 2025-09-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 4.25 in |
| [Ue] Rated Operational Voltage | 600 V AC230 V DC |
| Package Weight(Lbs) | 385.6 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1114336157358313, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.04613480802993514, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 31 kg CO2 eq., 31.15105178131794 |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | N |
| Device Type | LV equipment - LV switch - disconnector |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Cable Entry | 0.5" and 0.75" knock-outs (top and bottom) |
| Electrical Connection | screw clamp terminals |
| Local Signalling | red indicator, 115 V |
| Number Of Poles | 2P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | K |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 34 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 74 |
| Width Nominal | 2.44 in |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536504000 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 34.17034366061381 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2507018EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2507018EN |
| Nema Degree Of Protection | NEMA 1 Plastic standard size |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-09-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Phase | 1 phase |
|---|---|
| Range Of Product | K |
| Product Or Component Type | Single Unit Manual Switch |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
