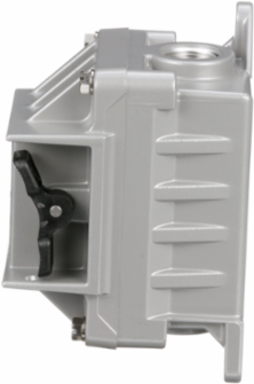

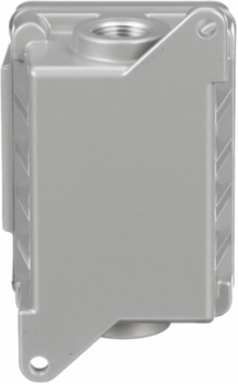

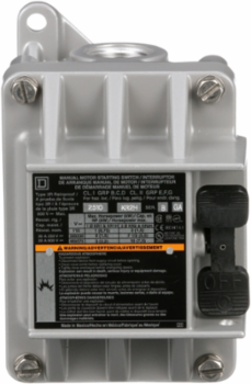

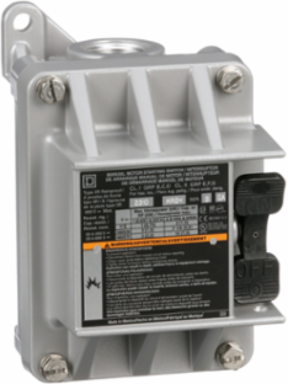

Square D 2510KR2H 30A 3 Pole Toggle Manual Motor Switch, 10HP at 575VAC, NEMA 7/9, 0.75 Inch Conduit

MPN: 2510KR2H
UPC: 785901554646
PPN: SCH-2510KR2H

$815.28

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switch is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, 10 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. A cast aluminum NEMA 7 and 9 hazardous location, Class 1, Groups B, C & D and Class II, Groups E, F, & G enclosure is used to protect this starter. This enclosure has one conduit entry on the bottom and one on the top. The 0.75 inch conduit entries are tapped with number 14 pipe threads. Enclosure is 6.36 inches tall, 3.95 inches wide and 4.35 inches deep. This device is UL Listed and CSA certified.

Features

Housed in a heavy-duty cast aluminum enclosure, this manual switch is fully certified for NEMA 7 and 9 hazardous locations, covering Class I (Groups B, C, & D) and Class II (Groups E, F, & G). This heavy-duty design safely contains internal electrical arcing, allowing industrial electricians to install local motor overrides directly within grain elevators, chemical processing zones, and oil refineries without risk of ignition.
This robust 3-pole, Type K manual switch supports up to 10 HP at 460V or 575V AC, alongside a 30A continuous thermal current capacity. It serves as a rugged, non-reversing on/off control for large industrial pumps, fans, and conveyors, giving plant engineers a highly reliable, cost-effective direct control solution where automated magnetic starters are unnecessary.
Engineered with an expansive voltage threshold, this industrial switch operates safely up to 600V AC and 230V DC. This extensive electrical tolerance allows maintenance teams to standardize on a single, flexible control component that can manage standard 460V 3-phase machinery or backup DC motor systems across the entire facility footprint.
The cast aluminum enclosure features two pre-tapped 3/4-inch NPT conduit openings positioned on both the top and the bottom for efficient feed-through wiring. This dual-knockout layout eliminates the need for field drilling, drastically lowering installation labor costs while ensuring a tightly sealed, explosion-proof threaded connection back to rigid conduit runs.
Equipped with industrial-grade screw clamp terminals, this switch ensures a high-vibration resistant connection for copper conductors ranging from 14 AWG to 10 AWG. The heavy-duty clamps maintain strong mechanical pressure on the wiring over time, eliminating localized heating, intermittent connections, and premature device failure under demanding machine operating conditions.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Depth	4.35 in

Complementary Attributes

Maximum Horse Power Rating	2 hp 115 V DC2 hp 115 V AC, 1 hp 90 V DC1.5 hp 230 V DC, 7.5 hp 230 V AC10 hp 460 V AC, 10 hp 575 V AC

Line Rated Current	20 A

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL listed file E58760 CCN NPXZ, CSA LR26817 class 3218 04
Carbon Footprint Of The End-of-life Phase [C1 To C4]	2 kg CO2 eq., 2.4790856800623073
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	9 kg CO2 eq., 9.306227720824142
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Cable Entry	0.75 NPT (top and bottom)
Electrical Connection	screw clamp terminals
Local Signalling	no indicator
Number Of Poles	3P
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	K
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	59 kg CO2 eq.
Pep Code	ENVPEP2507018EN
Pep Verification Date	2025-09-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	6.36 in
[Ue] Rated Operational Voltage	600 V AC230 V DC
Package Weight(Lbs)	1.588 kg
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	0.45891229716934673, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.18999500817307313, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	47 kg CO2 eq., 46.72657767197692
Local Publishable Date	2026-03-25
Stocking Flag	N
Device Type	LV equipment - LV switch - disconnector
Traceability	No
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2541
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Awg Gauge	14 AWG...10 AWG copper
Control Type	toggle
Energy Efficiency Optimized	False
Motor Starter Type	non reversing
Phase	3 phase
Product Or Component Type	Single Unit Manual Switch
Returnability	Yes
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	74
Width Nominal	3.95 in
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536504000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	59.16079837820578
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2507018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2507018EN
Nema Degree Of Protection	NEMA 3R/7/9 Cast Aluminium standard size
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-09-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
