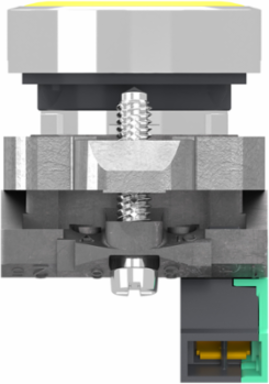

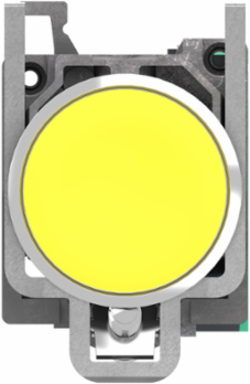

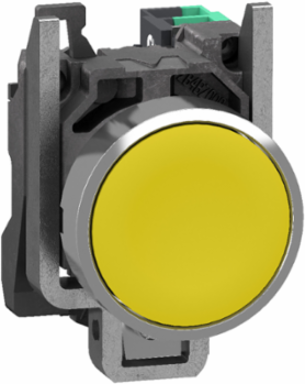

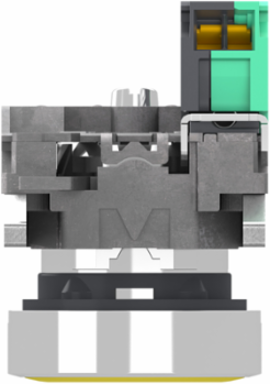

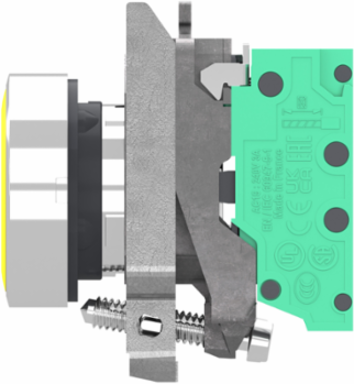

Schneider Electric XB4BA515 Push button, Harmony XB4, metal, flush, yellow, 22mm, spring return, unmarked, 1 NO, compact push in terminals
- MPN: XB4BA515
- PPN: SCH-XB4BA515
CAD
$59.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB4 modular yellow push button operates with a spring return mechanism. It has a chromium-plated metal bezel and a zamak fixing collar. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with push-in terminal connections. It is distinguishable thanks to clear color, minimizing errors during initial wiring and later maintenance operations. The XB4BA515 pushbutton is equipped with 1 normally open (NO) contact, featuring a slow break operation. This product is made from metal, it weighs 84g. It is impact-resistant, dust-resistant, water and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. Legend holders, marked or unmarked legends for this pushbutton can be purchased separately. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Depth43.2 mm
Physical Attributes
- Cap Operator Or Lens Color
- yellow
Complementary Attributes
- Ie Rated Operational Current
- 6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
- Uimp Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
Ui Rated Insulation Voltage300 V 3)IEC 60947-1
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- no, 0
- Shock Resistance
- 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance
- 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
- Ie Rated Operational Current
- 6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.1087803084, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.6 kg CO2 eq., 0.6095696323
- Certificate Agency
- EAC, IECEE CB Scheme, CCC, UL, CSA
- Local Publishable Date
- 2026-01-12
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- XB4
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Usage
- standard contacts
- Fixing Collar Material
- zamak
- Head Type
- standard

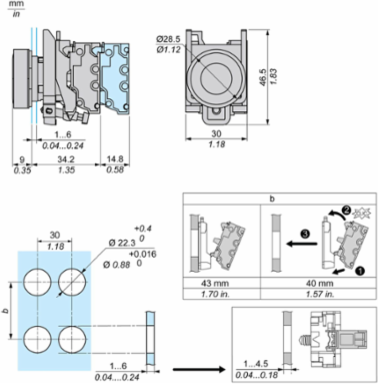

- Mounting Diameter
- 22.5 mm
- Operator Profile
- yellow flush, unmarked
- Positive Opening
- without
- Product Or Component Type
- push-button
- Range Of Product
- Harmony XB4
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.7 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ith Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Pep Code
- ENVPEP2308035EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Height Nominal
- 47 mm
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Travel2.05 mm NO changing electrical state), 4.3 mm total travel)

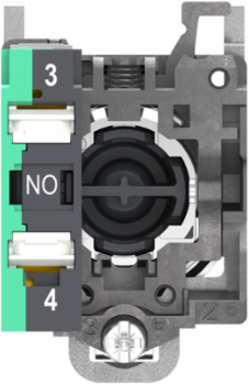

Terminals Description Iso N 1(13-14)NO, (13-14)NO
Connections Terminalspush-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Carbon Footprint Of The Distribution Phase A40.0112463108, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50 kg CO2 eq., 0.017248968
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0.0008697887
Local Data StatusPublishable
Pre Comm Date2024-05-23
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308035EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bezel Materialchromium plated metal
Contact Operationslow-break
Contacts Type And Composition1 NO
Device Short NameXB4
Gcr BridgeXB4BACUST01
Mechanical Durability10000000 cycles
Operating Force2.45 N NO changing electrical state
Overvoltage Categoryclass I conforming to IEC 60536
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Sustainable PackagingNo
Type Of Operatorspring return
Cap Operator Or Lens Coloryellow
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal30 mm
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2308035EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2308035EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.7477150082
Environmental DisclosureENVPEP2308035EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Overview Attributes
- Device Presentation
- complete product
