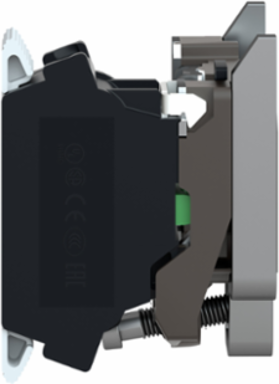

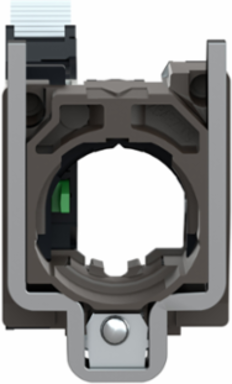

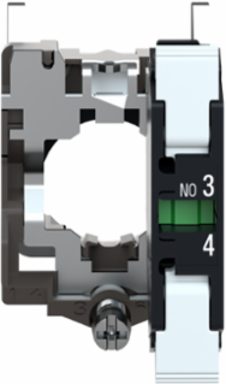

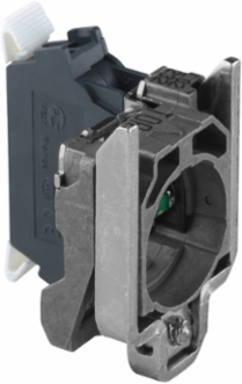

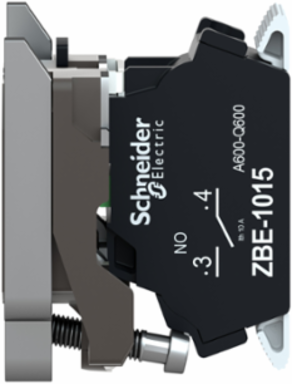

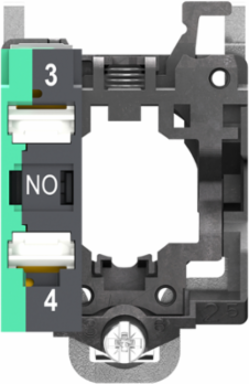

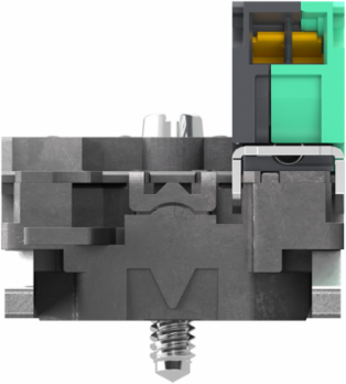

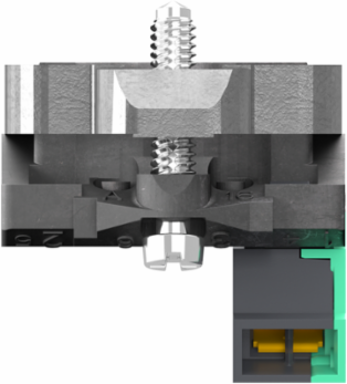

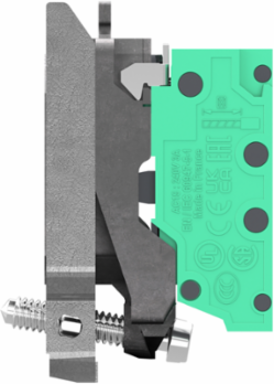

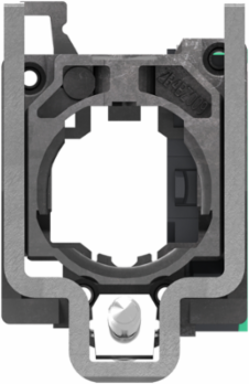

Schneider Electric ZB4BZ1015 Harmony XB4 Single Contact Block, 1 NO, IP20, 30 mm Depth, Silver Alloy
- MPN: ZB4BZ1015
- PPN: SCH-ZB4BZ1015
CAD
$26.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB4, single contact block is pre-assembled on a body/collar fixing unit. It is compatible with Harmony XB4 This body fixing collar is pre-mounted with a contact block. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB4
- Product Or Component Type
- complete body/contact assembly
- Head Type
- standard
- Contacts Type And Composition
- 1 NO
- Contact Operation
- slow-break
- Device Short Name
- ZB4
Contact Block Typesingle
Fixing Collar Materialzamak

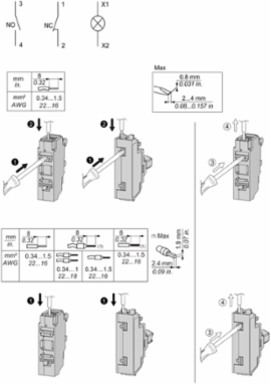

Connections - Terminalsspring clamp terminals
Sale Per Indivisible Quantity1
Device Compositionfixing collar || body
Complementary
- Contacts Usage
- standard contacts
- Operating Force
- 2.3 N NO changing electrical state
- Contacts Material
- silver alloy (Ag/Ni)
- Net Weight
- 0.049 kg
- Device Presentation
- basic sub-assemblies
- Operating Torque
- 0.05 N.m NO changing electrical state

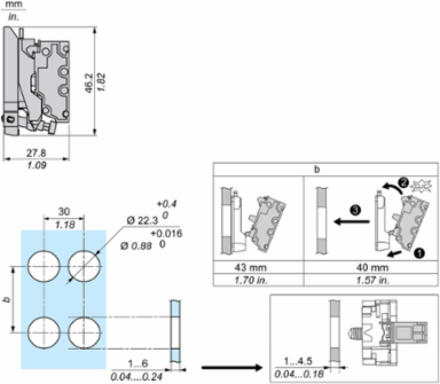

- Cad Overall Width
- 46.2 mm
Terminals Description Iso N°1(13-14)NO
Operating Travel2.6 mm NO changing electrical state)
Positive Openingwithout
Cad Overall Height27.6 mm
Electrical Durability10000000 cycles
Mechanical Durability10000000 cycles
Cad Overall Depth30 mm
Environment
- Product Certifications
- CSA || BV || GL || UL || LROS (Lloyds register of shipping) || DNV
- Standards
- IEC 60947-5-4 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-40-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP20 IEC 60529
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
