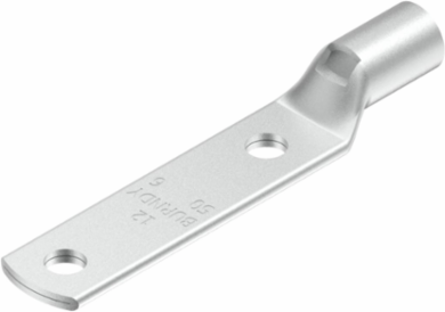

Burndy YAV162M10 HYLUGTM Copper Compression Terminals, 16 mm, M10 Stud, 3.37 Inch Length
- MPN: YAV162M10
- UPC: 781810637647
- PPN: BUR-50018659
CAD
$21.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HYLUG™ Copper tubing Compression terminals, 16 mm, M10 Stud, 2 Holes, Tin Plated
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 0.50 in
- Dimension - L Length Overall mm
- 85.7 mm
- Dimension - Pad Width inch
- 0.58 in
- Dimension - Z inch
- 0.42 in
Dimension - Hole Size mm10.4 mm
Dimension - Length Overall inch3.37 in
Dimension - Strip Length inch0.51 in
Certifications and Compliance
- Certification - CSA Approved
- No
Standards - RoHS Compliance StatusCM
General
- Die Index
- 7
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810637647
MaterialCopper
Plating TypeTin - Electro Plated
TypeMetric Terminals
UPC 12 Digit7818106376477
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 50
