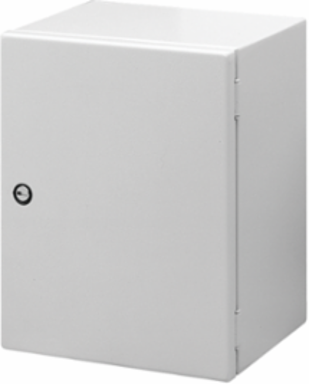

nVent Hoffman MHC20020080 Small GL66 Series Wall-Mount Enclosures, 200x200x80mm, Lt Gray, Steel
- MPN: MHC20020080
- UPC: 783510242282
- PPN: HOF-MHC20020080
- UNSPSC: 39121324
CAD
$135.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Single Door GL66 enclosures blend metric dimensions and aesthetic styling. This Small GL66 Series Wall-Mount Enclosures, MHC20020080 item measures 200x200x80mm with a material of Steel colored Lt Gray.
Features
- Dimensions in millimeters
- Seams continuously welded and ground smooth
- External formed body flange
- Large perimeter body opening
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Seamless foam-in-place gasket
- Grounding stud on the body
- Bonding provision on the door
- Conductive panel included
- Quarter-turn latches furnished with 3mm double-bit insert
- Door opens 180 degrees
- Furnished hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 200
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Thickness (T)
- 1.52
- NEMA Rating
- 12 Indoor, dust-resistant
- IP Rating
- IP66
- Size
- 200x200x80mm
Height (H)200
Depth (D)80
Product FamilyGL66
Color CodeRAL 7035
Mounting (G x H)182 x 135
Weight5.9
MaterialSteel
ColorLt Gray
