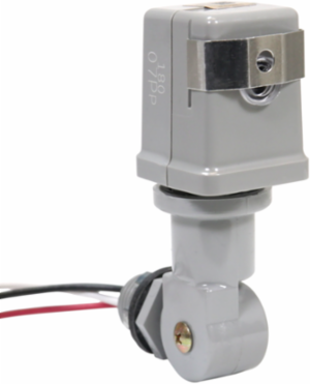

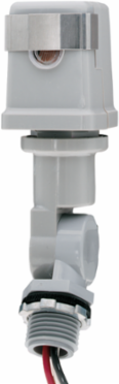

Intermatic K4221C Stem and Swivel Mount Thermal Photocontrol, 120 V
- MPN: K4221C
- UPC: 078275002029
- PPN: INT-K4221C
- UNSPSC: 39121524
CAD
$28.30
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

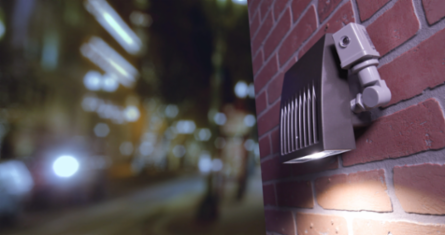

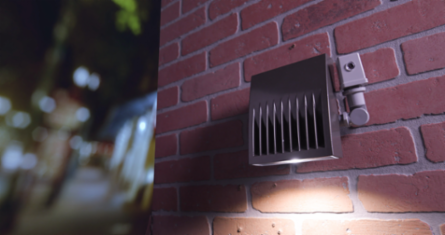

These photocontrols are provided with a swivel arm for easy and flexible installation to standard outdoor light fixtures or electrical boxes.
Features

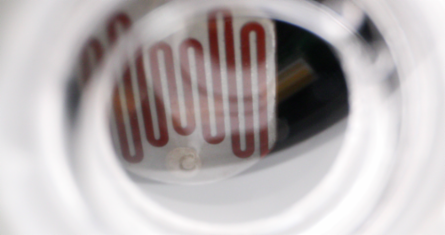

- Mechanical bimetal switch with Cadmium Sulfide photocell
- Delay feature prevents unwanted OFF switching
- High strength, UV resistant plastic housing
- Swivel with 1⁄2"-14 NPSM threaded stem
- Washer gasket and locking nut included
- #18 AWG, 6" wire leads
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 VAC, 50/60 Hz
- Magnetic Ballast Rating
- 8.3 A, 1000 VA
- Sensor Time Delay
- 30 sec to 90 sec
- Activation Off
- 3 to 15 fc
- Switch Configuration
- SPST
- Photocontrol Type
- Thermal
- Photocontrol Sensor Location
- Side
- Product Width
- 1.563 in
- Stem Diameter
- 1/2 in
- Stem Thread Type
- NPSM
- Wire Size Max
- #18 AWG
- Color
- Gray
- Operating Temperature
- -40 °F to 158 °F (-40 °C to 70 °C)
- Compliance
- UL Listed, CSA Certified, RoHS Compliant
Incandescent Load Rating15 A
Tungsten Rating15 A, 1800 W
Activation On1 to 5 fc
Switch TypeMechanical Bimetal
Photocell TypeCadmium Sulfide
Photocontrol StyleStem and Swivel Mount
Product Height5 in
Product Depth1.563 in
Stem Thread Size1/2 in - 14
Wire Lead Length6 in
MaterialPolycarbonate
Country of OriginMexico
Usage EnvironmentOutdoor
Warranty Period2-Year limited
