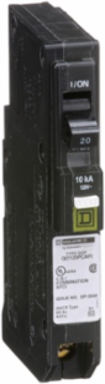

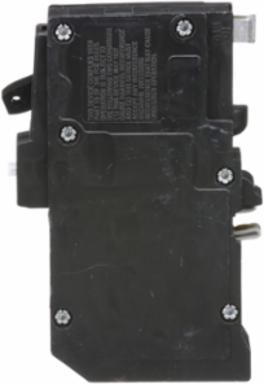

Square D QO120PCAFI Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, plug on neutral [TAA]
- MPN: QO120PCAFI
- UPC: 785901737186
- PPN: SCH-QO120PCAFI
CAD
$139.17
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, plug on neutral [TAA]
Features
- Designed for modern Square D QO Plug-on Neutral load centers, this breaker features a direct connection to the neutral bar, completely eliminating the need for a pigtail wire. This streamlined design reduces gutter clutter, significantly speeds up installation time for contractors, and creates a cleaner, more professional panel appearance that is easier to troubleshoot.
- This advanced breaker detects both series and parallel arcs dangerous sparking that occurs behind walls from damaged wire insulation or loose connections which standard breakers ignore. By instantly de-energizing the circuit when an unintended arc is sensed, it provides the highest level of fire prevention, ensuring your residential bedrooms and living areas meet the latest National Electrical Code (NEC) safety requirements.
- Integrated with Square D s exclusive TIME-SAVER technology, this unit provides a specific blink pattern after a trip to indicate whether the fault was a ground fault, a series arc, or a parallel arc. This diagnostic feedback saves electricians and homeowners hours of expensive troubleshooting time by pinpointing the exact nature of the circuit issue rather than leaving you to guess.
- Rated at 120V with a 10kA interrupting rating, this breaker is optimized for 20-amp branch circuits typically found in modern residential builds. It is specifically engineered to handle the loads of sensitive electronics and appliances while providing superior thermal-magnetic protection, ensuring your home s electrical distribution system remains robust and code-compliant.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Depth
- 74 mm
ComplianceTAA Compliant
Complementary Attributes
- Line Rated Current
- 20 A
Important Information Attributes
- Persona Type Ids
- EUA, LC, OM, SC
- Certificate Agency
- UL Listed, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0514009346
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.9252273573
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Use Carbon Footprint
- 37.375
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Residential
- Awg Gauge
- 14 AWG...8 AWG copper12 AWG...8 AWG aluminium
- Circuit Breaker Type
- combination ARC-fault
- Energy Efficiency Optimized
- False
- Number Of Poles
- 1P
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- QO
- Software Version
- EIME v5.9.4
- Tightening Torque
- 4-4 N.m
- Pep Code
- ENVPEP2212005EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Width Nominal
- 19 mm
- Connections - Terminals
- plug-on neutral
- Package Weight(Lbs)
- 231.332 g
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 455.05
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 5.7146
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 503.15
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 472.94
- Water Pollution (M3) Operational Energy Use [B6]
- 1842.6
Persona Type NamesConsumer, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The Distribution Phase [A4]0.0635300484, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.001733569, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]37 kg CO2 eq., 37.375
Local Publishable Date2026-04-14
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2212005
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Electrical Connectionpressure plate
Mounting Modeplug-in
Number Of Spaces Required1
Product Or Component Typeminiature circuit-breaker
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint39 kg CO2 eq.
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120 VAC and rated current 15A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA;
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal121 mm
[Ue] Rated Operational Voltage120 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]3173.9
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]37.375
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]472.94
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]30.218
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]30.218
Customs Code8536200040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 39.4168919093
- Circularity Profile
- ENVEOLI2212005
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2212005EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Environmental DisclosureENVPEP2212005EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductQO
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
