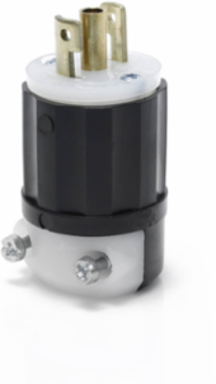

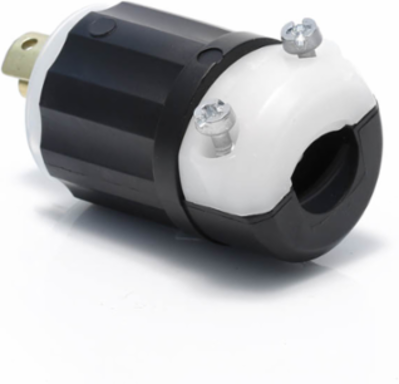

Leviton ML2-P Mini Locking Plug 15A, 125V, NEMA ML2P, Impact Modified Nylon Body
- MPN: ML2-P
- UPC: 078477987179
- PPN: LEV-ML2-P
CAD
$30.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

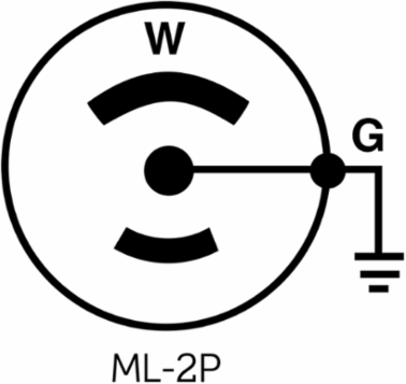

15 Amp, 125 Volt, NEMA ML2P, 2P, 3W, Locking Plug, Industrial Grade, Grounding, MiniLock - BLACK-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- Warranty
- Limited Lifetime Warranty
CSA C22.2 No. 42File LR-406
NOM057
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Blades/Contacts
- Solid Brass
- Clamp Insert
- Nylon
- Cord-Clamp
- Nylon
- Wire Module
- Nylon
Back CoverThermoplastic
Body MaterialImpact Modified Nylon
ColorBlack-White
Terminal ScrewsBrass
Mechanical Specifications
- Cord Range
- .218 - .430
- Screw Terminal Torque
- 10-12 in-lbs
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Wire Gauge
- 18-14 AWG
Product IDRatings and NEMA I.D. permanently marked on device
Terminal Accom.18-14 AWG
Torque Range10-12 in-lbs
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated HB or better UL94
Electrical Specifications
- Amperage
- 15 A
- Blades/Contacts
- Solid Brass
- Brand
- Black and White
- Cord Range
- .218 - .430
- Device Type
- Locking Plug
- Flammability
- Rated HB or better UL94
- Pole
- 2
- Voltage
- 125 VAC
- Wire
- 3
Assembly ScrewsSteel, Zinc Plated
Body MaterialImpact Modified Nylon
ColorBlack-White
Current InterruptingCertified for current interrupting at full rated current
Dielectric VoltageWithstands 2000V per UL498
GroundingNon-Grounding
Temperature RiseMax 30C at 250 cycles OL at 200 pct rated current
WarrantyLimited Lifetime Warranty
Wire Gauge18-14 AWG
