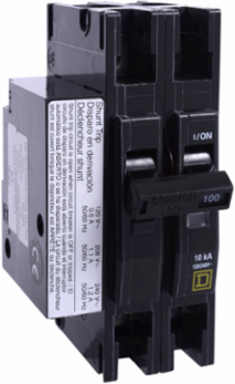

Square D QOU21001021 Mini Circuit Breaker 100A 2 Pole 120/240VAC 10kA Shunt Trip
- MPN: QOU21001021
- UPC: 785901272182
- PPN: SCH-QOU21001021
- UNSPSC: 39121603
CAD
$962.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 100A, 240VAC. This circuit breaker provides 10 kA breaking capacity. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA. This circuit breaker is equipped with a factory-installed shunt trip accessory,
Features
- Ideal for OEM applications requiring high reliability and flexible configuration
- Qualifies as a sustainable product due to its high-efficiency design
- Simple design and clear instructions help you install correctly.
- Can be DIN rail-mounted, surface-mounted, or flush-mounted
- Visi‑Trip® indication provides a clear visual signal when the breaker has tripped
- Type S motor starters are available with replaceable coils in a wide variety of voltages
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 2.95 in |
| Weight | 562.455 g |
|---|
Complementary Attributes
| Ue Rated Operational Voltage | 120/240 V AC, 120 V AC60 V DC |
|---|
| Line Rated Current | 100 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM |
|---|---|
| Electrical Connection | slotted box lugs, line side, slotted box lugs, load side |
| Carbon Footprint Of The Distribution Phase A4 | 0.37807159915350397, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.07523386726439814, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 10 kg CO2 eq., 10.168796335000863 |
| Local Publishable Date | 2026-09-05 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2534 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Awg Gauge | 12 AWG...2/0 AWG aluminium/copper |
| Circuit Breaker Type | standard |
| Mounting Mode | unit mount |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | QOU |
| Software Version | v6.3.2 |
| Tightening Torque | 45-45 lbf.in (12 AWG...2/0 AWG) |
| Database Version | 2026-04 |
| Height Nominal | 4.45 in |

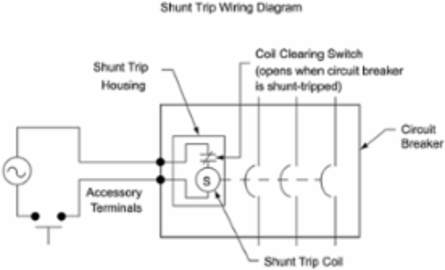

| Accessory / Separate Part Type | shunt trip 120/208/240 V AC |
| Customs Code | 8536200040 |
| Halogen Free Status | Halogen free product |
| Functional Unit Description | Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd in the Household and Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 21.2868 |
| Persona Type Names | End User, Original Equipment Manufacturer |
|---|---|
| Certificate Agency | UL Listed, CSA, IEC |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.5 kg CO2 eq., 0.5316335189937854 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 4 kg CO2 eq., 3.645940361897701 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Circuit Breaker Application | HACR rated |
| Energy Efficiency Optimized | False |
| Number Of Poles | 2P |
| Product Or Component Type | miniature circuit-breaker |
| Returnability | No |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 0 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 2.25 in |
| Nbr. Of Units In Pkg. | 1 |
| Short Circuit Current | 10 kA |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 32 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Halogene Performance | Halogen free product |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-09-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2111016EN |
| Halogen Content Performance | Halogen free product |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2111016EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | miniature circuit-breaker |
|---|
| Range Of Product | QOU |
|---|
Contractual Warranty Attributes
| Warranty | 18 months |
|---|
