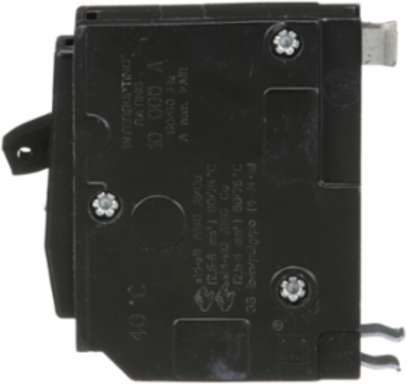

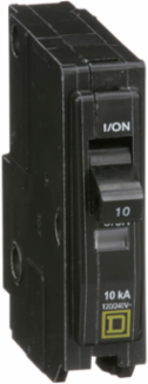

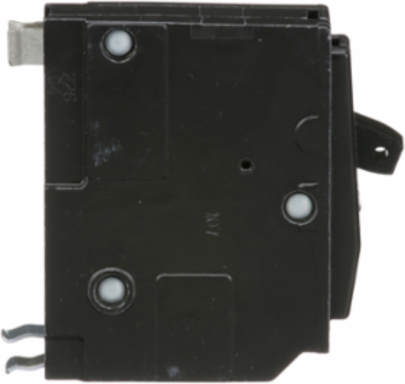

Square D QO110 Mini Circuit Breaker, 10A, 1 Pole, 120/240V AC, 10kA Breaking Capacity
Square D QO110 Mini Circuit Breaker, 10A, 1 Pole, 120/240V AC, 10kA Breaking Capacity
- MPN: QO110
- UPC: 785901205593
- PPN: SCH-QO110
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$21.68/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 10A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Specifications
- Rated Current
- 10 A
- Breaking Capacity
- 10 kA 120/240 V AC 50/60 Hz, 10 kA 120 V AC 50/60 Hz
- Ambient Air Temperature For Operation
- 40 °C (104 °F)
- Circuit Breaker Application
- HACR rated
- Mounting Mode
- Plug-in
- Wire Size
- AWG 14...AWG 8 copper or aluminum
- Height
- 76 mm (2.99 in)
- Depth
- 74 mm (2.91 in)
- Range Of Product
- QO
- Mercury Free
- Yes
- Product Certifications
- UL Listed, CSA Certified
- Country of Origin
- Mexico
Rated Operational Voltage120/240 V AC, 120 V AC
Poles1P
Circuit Breaker TypeStandard
Product TypeMiniature circuit-breaker
Electrical ConnectionPressure plate
Tightening Torque4 N.m
Width19 mm (0.75 in)
Net Weight0.118 kg (0.26 lb)
Toxic Heavy Metal FreeYes
Halogen ContentHalogen free
RoHS ComplianceCompliant with Exemptions, REACh, EU RoHS, China RoHS
Sustainable Offer StatusGreen Premium product
