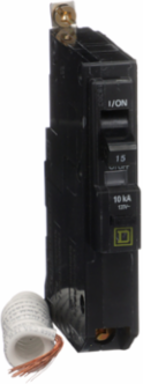

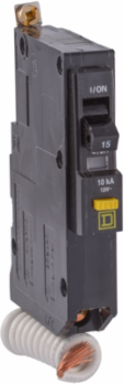

Mini Circuit Breaker 15A 1 Pole 120V AC 10kA Ground Fault 30mA Bolt-On
Square D

Square D QOB115EPD Mini Circuit Breaker 15A 1 Pole 120V AC 10kA Ground Fault 30mA Bolt-On

  • MPN: QOB115EPD
  • UPC: 785901763673
  • PPN: SCH-QOB115EPD

CAD

$473.38

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

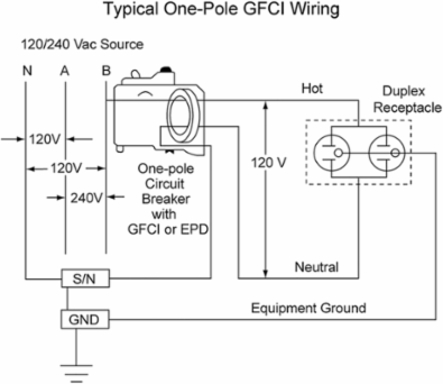

Square D™ QO™ and QOB Miniature Circuit Breakers, QOB115EPD, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Are designed to provide ground fault protection of equipment. UL listed CSA certified This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 30mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Documentation & Downloads

Specifications

Additional

Current Rating
15 A
Interrupt Rating
10 kA 120 V AC 50/60 Hz
Poles
1P
Wire Size
AWG 14 to AWG 8 copper, AWG 12 to AWG 8 aluminum
Dimensions

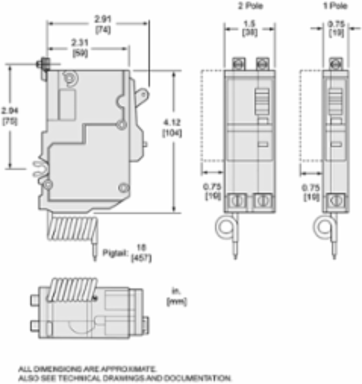

105 mm (H) x 19 mm (W) x 74 mm (D)
Material
Pressure plate electrical connection
Ambient Temperature Rating
40 °C
Country of Origin
Mexico
Voltage120 V AC
Ground Fault ProtectionClass B 30 mA
Mounting TypeBolt-On
Tightening Torque4-4.6 N.m, 4-20 mm² AWG 12 to AWG 4
Net Weight0.236 kg
CertificationsUL Listed, CSA Certified
RoHSCompliant with exemptions, exempted, SVHC above threshold
