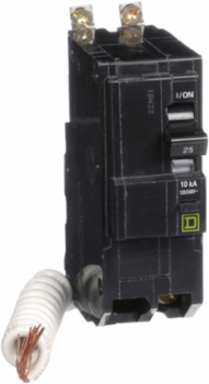

Square D QOB225EPD Mini Circuit Breaker 25A 2-Pole 120/240V AC Bolt-On 10kA 30mA Ground Fault

  • MPN: QOB225EPD
  • UPC: 785901362913
  • PPN: SCH-QOB225EPD

CAD

$970.58

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Mini Circuit Breaker 25A 2-Pole 120/240V AC Bolt-On 10kA 30mA Ground Fault

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico, United States

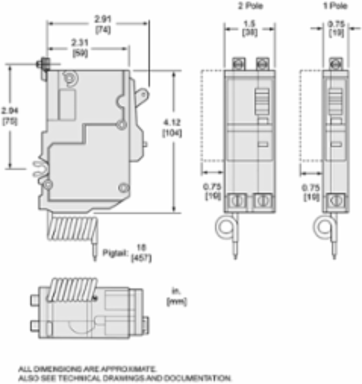

Depth
74 mm
ComplianceTAA Compliant

Complementary Attributes

Rated Current
25 A
Line Rated Current25 A

Important Information Attributes

Persona Type Ids
EU, LC, OM
Tightening Torque
4-4 N.m, 4.6-4.6 N.m 4-20 mm² (12 AWG...4 AWG)
[Ue] Rated Operational Voltage
120/240 V AC, 120 V AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.1 kg CO2 eq., 0.0887834138
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
3 kg CO2 eq., 3.3253920066
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Serviceability
No
Field Service Division
PPIBS
Use Carbon Footprint
37.375
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
3
Function Option
Standard
Market Segmentation
Commercial
Awg Gauge
14 AWG...8 AWG copper12 AWG...8 AWG aluminium
Circuit Breaker Type
ground fault protecting class B 30 mA
Energy Efficiency Optimized
False
Number Of Poles
2P
Product Availability
Stock - Normally stocked in distribution facility
Range Of Product
QO
Software Version
EIME v5.9.4
Total Lifecycle Carbon Footprint
41 kg CO2 eq.
Database Version
2022-01
Pcr Version
PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep
Independent external review
Functional-unit Description
Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120 VAC and rated current 15A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA;
Functional-unit Unit
unit
Energy Model - Manufacturing [A1-a3]
Energy model used: Mexico
Energy Model - Use [B6]
Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal
116 mm
Nbr. Of Units In Pkg.
1
Take-back
No
Air Pollution (M3) Operational Energy Use [B6]
3173.9
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
37.375
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
472.94
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
30.218
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
30.218
Customs Code
8536200040
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Certificate AgencyUL Listed, CSA
Carbon Footprint Of The Distribution Phase [A4]0.1097336968, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0029943458, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]37 kg CO2 eq., 37.375
Local Publishable Date2026-04-14
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2212005
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id3
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Circuit Breaker Applicationnot rated
Electrical Connectionpressure plate
Mounting Modebolt-on
Number Of Spaces Required2
Product Or Component Typeminiature circuit-breaker
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2212005EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US
Width Nominal38 mm
Package Weight(Lbs)430.913 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]455.05
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]5.7146
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]503.15
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]472.94
Water Pollution (M3) Operational Energy Use [B6]1842.6

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level
0 %
Carbon Footprint
40.901903463
Circularity Profile
ENVEOLI2212005
Eu Rohs Directive
Compliant By Exemption
Packaging Without Single Use Plastic
Yes
Pep Code
ENVPEP2212005EN
Pcr Version
PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep
Independent external review
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Environmental DisclosureENVPEP2212005EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29

General Attributes

Product Or Component Type
miniature circuit-breaker
Range Of ProductQO

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

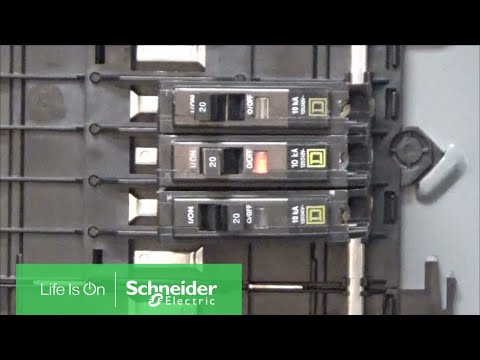

Loading video…
