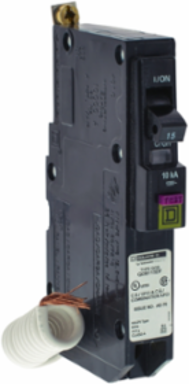

![Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 22kA, bolt on, dual function, pigtail [TAA]](https://images.province-electric.com/SCH-QOB115VHDF/mini-circuit-breaker-qo-15a-medium.webp)
Documentation & Downloads
Square D QOB115VHDF Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 22kA, bolt on, dual function, pigtail [TAA]
- MPN: QOB115VHDF
- UPC: 785901732709
- PPN: SCH-QOB115VHDF
CAD
$542.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 22kA, bolt on, dual function, pigtail [TAA]
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Depth
- 74 mm
ComplianceTAA Compliant
Complementary Attributes
- Line Rated Current
- 15 A
Important Information Attributes
- Persona Type Ids
- EU, LC
- Certificate Agency
- UL Listed, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.02429860115493199
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.9 kg CO2 eq., 0.9101066361536486
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2212005
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Electrical Connection
- pressure plate
- Mounting Mode
- bolt-on
- Number Of Spaces Required
- 1
- Product Or Component Type
- miniature circuit-breaker
- Returnability
- No
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 16 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120 VAC and rated current 15A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA;
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 21.402
- Energy Model - Installation [A5]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Width Nominal
- 19 mm
- Connections - Terminals
- pigtail neutral
- Package Weight(Lbs)
- 117.934 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor
Carbon Footprint Of The Distribution Phase [A4]0.03003235872187527, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0008195045897852681, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]15 kg CO2 eq., 14.81868822611412
Local Publishable Date2026-04-14
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Awg Gauge14 AWG...8 AWG copper or aluminium14 AWG...10 AWG copper
Circuit Breaker Typecombination ARC-fault and ground fault
Energy Efficiency OptimizedFalse
Number Of Poles1P
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Software VersionEIME v5.9.4
Tightening Torque4.6-4.6 N.m
Pep CodeENVPEP2212005EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal121 mm
[Ue] Rated Operational Voltage120 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 15.78394532673437
- Circularity Profile
- ENVEOLI2212005
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2212005EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Environmental DisclosureENVPEP2212005EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductQO
