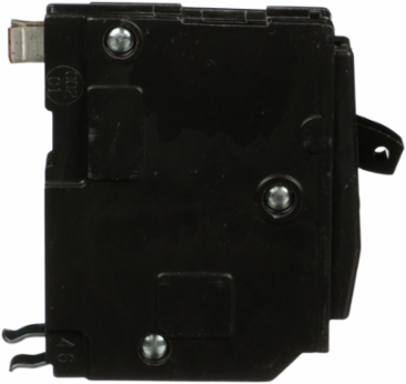

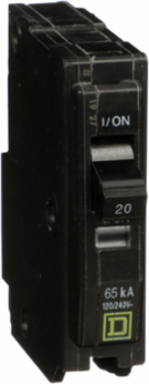

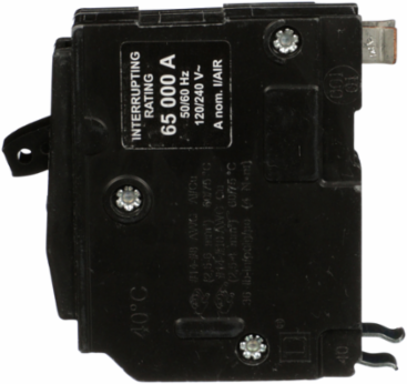

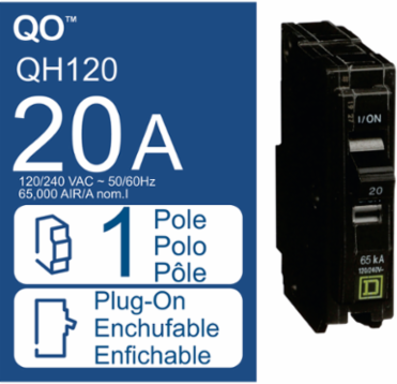

Square D QH120 Mini Circuit Breaker, 1 Pole, 20A, 120/240VAC, 65kA Breaking Capacity
- MPN: QH120
- UPC: 785901012870
- PPN: SCH-QH120
CAD
$143.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mini Circuit Breaker, 1 Pole, 20A, 120/240VAC, 65kA Breaking Capacity
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth74 mm
Complementary Attributes
- Rated Current
- 20 A
Line Rated Current20 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Certificate Agency
- UL Listed, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0158015006, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0000305921, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 17 kg CO2 eq., 17.3042434783
- Local Publishable Date
- 2026-04-14
- Stocking Flag
- N
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2534
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Residential
- Awg Gauge
- 14 AWG...8 AWG copper or aluminium
- Circuit Breaker Type
- standard
- Energy Efficiency Optimized
- False
- Number Of Poles
- 1P
- Poles Description
- 1P
- Product Or Component Type
- miniature circuit-breaker
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 18 kg CO2 eq.
- Pep Code
- ENVPEP2111016EN
- Pep Verification Date
- 2021-11-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
- Height Nominal
- 76 mm
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 122.47 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
[Ue] Rated Operational Voltage120/240 V AC, 120 V AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0223884292
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.7 kg CO2 eq., 0.7156197349
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Circuit Breaker ApplicationHACR and Switching Duty rated
Electrical Connectionpressure plate
Mounting Modeplug-in
Number Of Spaces Required1
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Software VersionEIME v5.9.1
Tightening Torque4.6-4.6 N.m
Breaking Capacity 565 kA
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh24.8784
Energy Model - Installation [A5]Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Width Nominal19 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Halogene Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 18.0580837352
- Environmental Disclosure
- ENVPEP2111016EN
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2111016EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2021-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductQO
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
