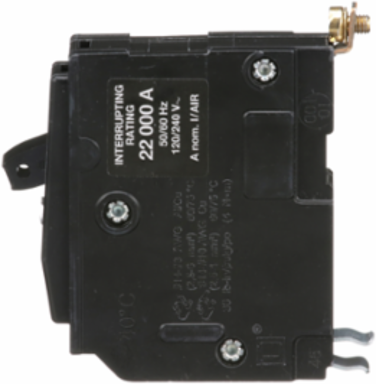

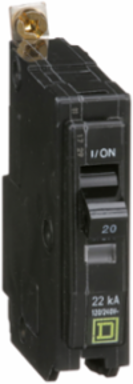

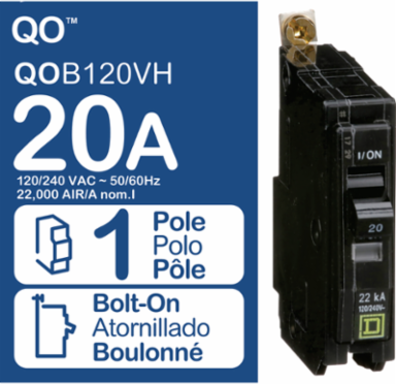

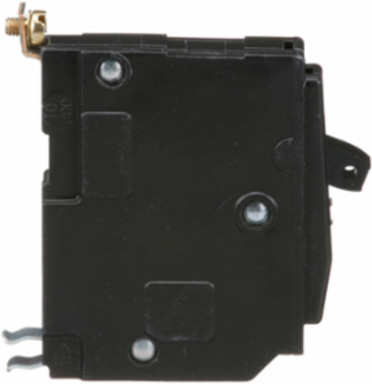

Square D QOB120VH Mini Circuit Breaker 20A 1 Pole 120/240V AC 22kA Bolt-On Mount
Square D QOB120VH Mini Circuit Breaker 20A 1 Pole 120/240V AC 22kA Bolt-On Mount
- MPN: QOB120VH
- UPC: 785901371731
- PPN: SCH-QOB120VH
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$97.55/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Current Rating
- 20 A
- Breaking Capacity
- 22 kA 120/240 V AC 50/60 Hz
- Mounting Type
- Bolt-on
- Tightening Torque
- 4.6 N.m

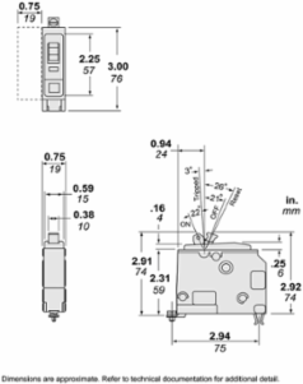

- Width
- 19 mm (0.75 in)
- Net Weight
- 0.136 kg (0.30 lb)
- Electrical Connection
- pressure plate
- Ambient Air Temperature For Operation
- 40 °C (104 °F)
- Toxic Heavy Metal Free
- Yes
- Mercury Free
- Yes
- China Rohs Regulation
- Product out of China RoHS scope
- Rohs Exemption Information
- Yes
- Range Of Product
- QO
- Circularity Profile
- N/A
- Warranty
- 18 months
Voltage Rating120/240 V AC
Poles1P
Wire SizeAWG 14...AWG 8 copper or aluminum
Height76 mm (2.99 in)
Depth74 mm (2.91 in)
Circuit Breaker ApplicationHACR rated
Circuit Breaker Typestandard
Product Or Component Typeminiature circuit-breaker
Halogen Content PerformanceHalogen free product
Reach RegulationContains SVHC above threshold
Eu Rohs DirectiveCompliant with Exemptions
Product CertificationsUL Listed, CSA Certified
Country of OriginUS
Sustainable Offer StatusGreen Premium product
