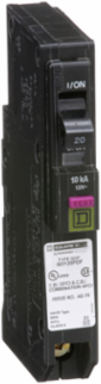

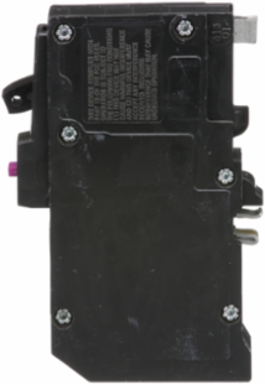

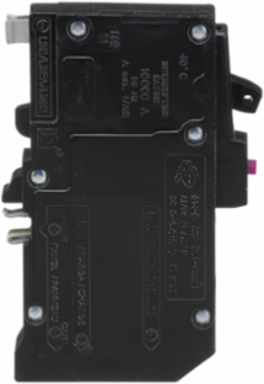

Square D QO120PDF Mini Circuit Breaker 20A 1 Pole 120V AC 10kA Plug-in Mount
Square D QO120PDF Mini Circuit Breaker 20A 1 Pole 120V AC 10kA Plug-in Mount
- MPN: QO120PDF
- UPC: 785901741176
- PPN: SCH-QO120PDF
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$121.91/ EA
Description
Square D™ QO™ and QOB Miniature Circuit Breakers, QO120PDF, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. has dual funcion circuit breaker application. UL listed CSA certified This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a dual function feature with plug on neutral. This provides combination arc fault and ground fault protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Rated Current
- 20 A
- Breaking Capacity
- 10 kA 120 V AC 50/60 Hz
- Circuit Breaker Type
- Combination ARC-fault and ground fault
- Poles Description
- 1P
- Mounting Type
- Plug-in
- Tightening Torque
- 4-4 N.m
- Net Weight
- 0.249 kg
- Connections - Terminals
- Plug-on neutral
- Certifications
- UL Listed, CSA Certified
- Mercury Free
- Yes
- China RoHS
- Out of China RoHS scope
Rated Operational Voltage120 V AC
Number of Poles1P
Ambient Air Temperature For Operation40 °C
Circuit Breaker ApplicationHACR rated
Wire SizeAWG 14 to AWG 8 copper or aluminum

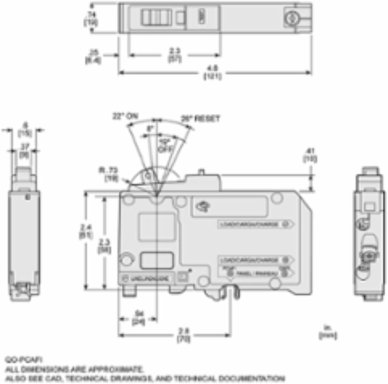

Dimensions (HxWxD)121 mm x 19 mm x 74 mm
Electrical ConnectionPressure plate
Range Of ProductQO
Product Or Component TypeMiniature circuit-breaker
RoHS ComplianceCompliant with Exemptions
Reach RegulationContains SVHC above threshold
