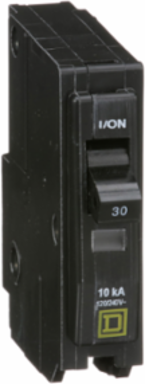

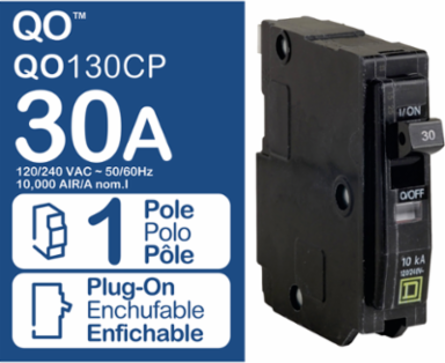

Schneider Electric QO130 Mini Circuit Breaker 30A 1 Pole Plug-in Mount 10kA 120/240VAC
- MPN: QO130
- UPC: 785901400141
- PPN: SCH-QO130
CAD
$34.11
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mini Circuit Breaker 30A 1 Pole Plug-in Mount 10kA 120/240VAC
Features

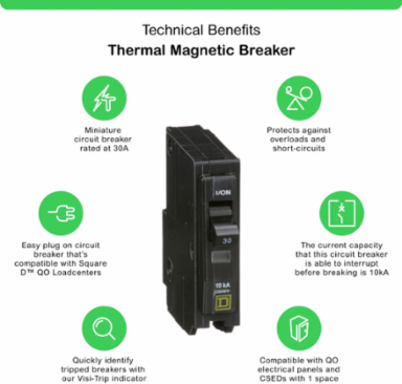

- The QO130 is a 30-Amp, single-pole, plug-on circuit breaker. Part of the legendary Square D QO (Quick-Open) family, it is arguably the most recognizable and trusted breaker in the Canadian electrical industry. It is designed for use in QO load centres, NQ panelboards, and switchboard distribution panels.
- A 30-Amp single-pole breaker is typically used for heavy-duty 120V circuits. In a Canadian home or business, it is commonly found powering: Large RV Receptacles: (30A 120V travel trailer plugs). High-Power Appliances: Such as some commercial microwaves or industrial heat sealers. Dedicated Equipment: Small 120V motors or specialized workshop machinery. Wiring Note: Under the Canadian Electrical Code (CEC), a 30A circuit generally requires #10 AWG copper wire. Using thinner #12 or #14 wire with this breaker is a fire hazard and a code violation.

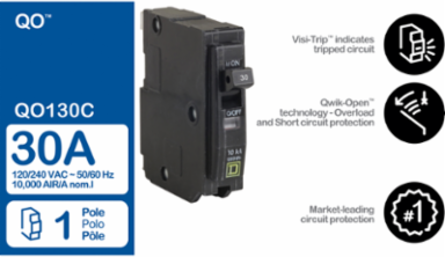

- The QO130 features the patented Visi-TripTM indicator. When the breaker trips, a highly visible red flag snaps into a window on the face of the breaker. This allows homeowners and maintenance staff to identify the faulted circuit instantly, without having to guess which handle moved slightly out of place.
- The standard QO130 features a plug-on connection. It snaps directly onto the bus bar of the panel without the need for mounting screws. The QO "dual-spring" jaw design ensures a high-pressure, low-resistance connection that remains tight for decades, even as the metal expands and contracts with temperature changes.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Ireland, Mexico, United States |
|---|

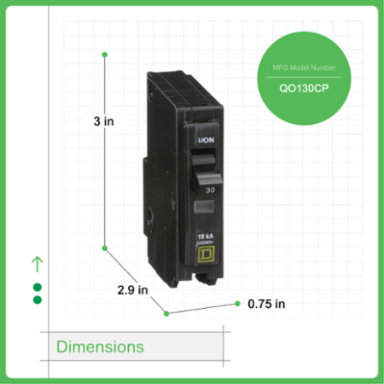

| Depth | 74 mm |
|---|
Complementary Attributes
| Rated Current | 30 A |
|---|
| Line Rated Current | 30 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, OM, SC |
|---|---|
| Certificate Agency | UL Listed, CSA |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0158015006, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0000305921, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 17 kg CO2 eq., 17.3042434783 |
| Local Publishable Date | 2026-06-11 |
| Stocking Flag | N |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2534 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Awg Gauge | 14 AWG...8 AWG copper or aluminium |
| Circuit Breaker Type | standard |
| Energy Efficiency Optimized | False |
| Number Of Poles | 1P |
| Poles Description | 1P |
| Product Or Component Type | miniature circuit-breaker |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 18 kg CO2 eq. |
| Breaking Capacity 5 | 10 kA |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 24.8784 |
| Energy Model - Installation [A5] | Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX |
| Width Nominal | 19 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536200040 |
| Persona Type Names | End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician |
|---|---|
| [Ue] Rated Operational Voltage | 120/240 V AC, 120 V AC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0223884292 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.7 kg CO2 eq., 0.7156197349 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Circuit Breaker Application | HACR rated |
| Electrical Connection | pressure plate |
| Mounting Mode | plug-in |
| Number Of Spaces Required | 1 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QO |
| Software Version | EIME v5.9.1 |
| Tightening Torque | 4-4 N.m |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2111016EN |
| Pep Verification Date | 2021-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Mexico |
| Energy Model - Use [B6] | Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX |
| Height Nominal | 76 mm |
| Halogen-free Status | Halogen free product |
| Package Weight(Lbs) | 122.47 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Halogene Performance | Halogen free product |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 18.0580837352 |
| Environmental Disclosure | ENVPEP2111016EN |
| Halogen Content Performance | Halogen free product |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2111016EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 40 °C |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2021-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | miniature circuit-breaker |
|---|
| Range Of Product | QO |
|---|
ETIM
| ETIM 8 | EC000042 |
|---|
| ETIM 9 | EC000042 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
