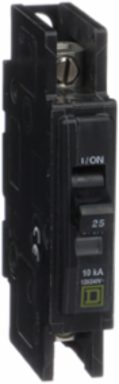

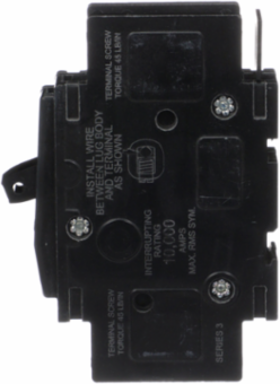

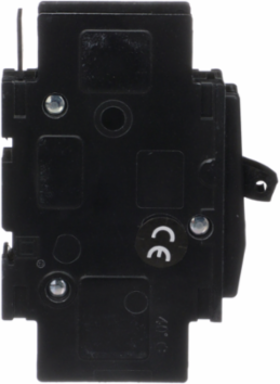

Square D QOU125 Mini Circuit Breaker 25A 1 Pole 120/240V AC 10kA
- MPN: QOU125
- UPC: 785901489085
- PPN: SCH-QOU125
CAD
$127.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- QOU
- Product Or Component Type
- miniature circuit-breaker
Circuit Breaker Typestandard
Circuit Breaker ApplicationHACR rated
Complementary
- Height
- 4.05 in
- Electrical Connection
- slotted box lugs, line side || slotted box lugs, load side
- [In] Rated Current
- 25 A
- Width
- 0.75 in
- [Ue] Rated Operational Voltage
- 120/240 V AC || 120 V AC || 48 V DC
Tightening Torque45-45 lbf.in AWG 14...AWG 2)
Mounting Modeunit mount
Awg GaugeAWG 14...AWG 2 aluminum/copper
Depth2.95 in
Environment
- Product Certifications
- UL listed || IEC || CSA
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Toxic Heavy Metal FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
