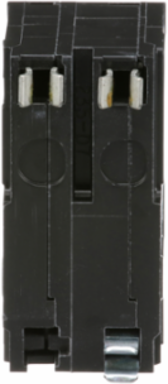

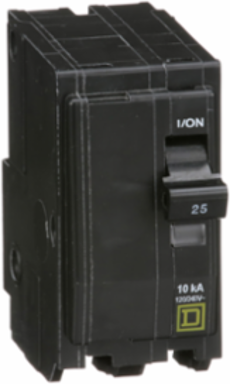

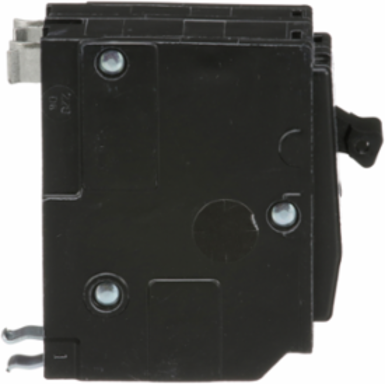

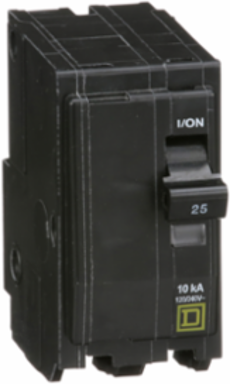

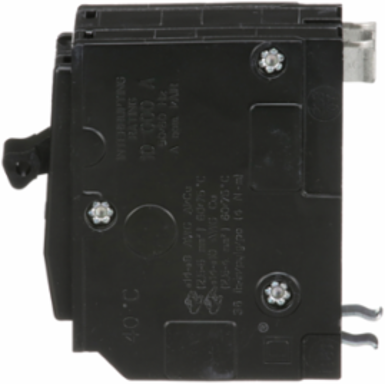

Square D QO225 Mini Circuit Breaker 25A 2 Pole 120/240V AC 10kA Plug-in Mount
- MPN: QO225
- UPC: 785901012412
- PPN: SCH-QO225
CAD
$44.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 25A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Features
- Engineered for 120/240V applications, this 25A two-pole breaker is perfectly calibrated to protect dedicated mid-range electrical loads like deep well pumps, baseboard heaters, and small air conditioning units. The robust thermal-magnetic tripping mechanism provides highly responsive defense against sudden short circuits and continuous overloads, preventing catastrophic heat damage to your heavy-duty wiring.
- Featuring Square D’s industry-leading Visi-Trip visual indicator, a highly visible red flag snaps into the breaker window the exact millisecond a fault occurs. This eliminates the frustrating, time-consuming guesswork of toggling multiple breakers in a dark basement, allowing homeowners and technicians to instantly identify the overloaded 240V circuit and safely restore power.
- Boasting a 10,000 Ampere Interrupting Capacity (AIC), this durable breaker safely halts high-level electrical faults before they can damage your connected equipment or cause electrical fires. Fully UL Listed and CSA Certified to meet rigorous North American safety codes, it delivers reliable, long-lasting overcurrent protection that keeps your property safe and ensures your homeowner's insurance policy remains strictly valid.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 25 A
- Breaking Capacity
- 10 kA
- Circuit Breaker Type
- standard
- Electrical Connection
- pressure plate
- Tightening Torque
- 4-4 N.m

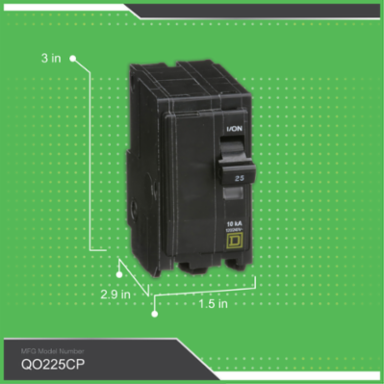

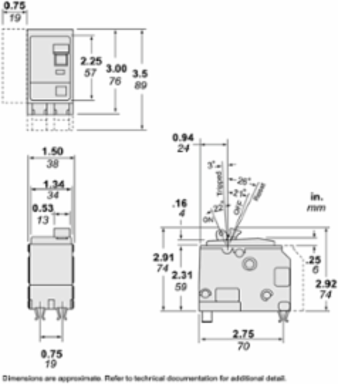

- Width
- 38 mm
- Net Weight
- 0.249 kg
- Ambient Air Temperature For Operation
- 40 B0C
- Halogen Content Performance
- Halogen free product
- RoHS Compliance
- Compliant with Exemptions
- Country of Origin
- Mexico
Voltage120/240 V AC
Poles2P
Mounting Typeplug-in
Wire SizeAWG 14...AWG 8 copper or aluminum
Height76 mm
Depth74 mm
Product CertificationsUL listed, CSA certified
Toxic Heavy Metal FreeYes
Mercury FreeYes
REACH ComplianceContains SVHC above threshold, with exemptions
