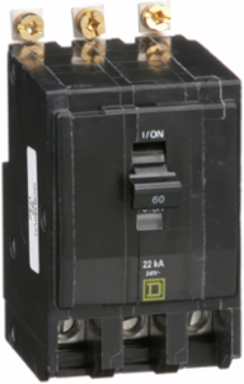

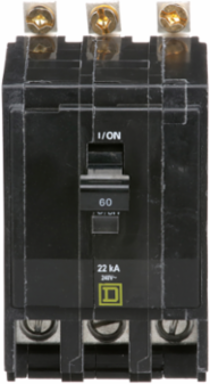

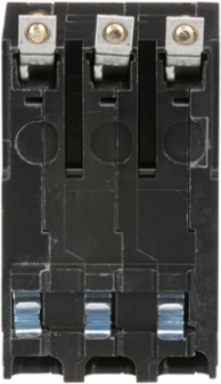

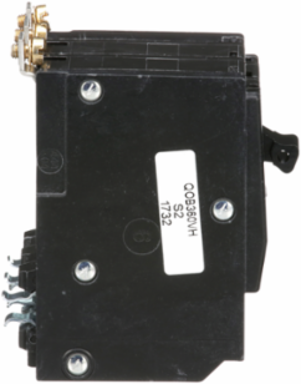

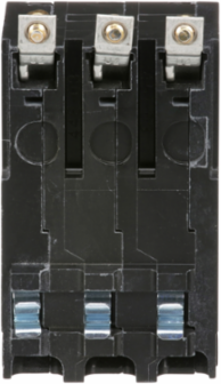

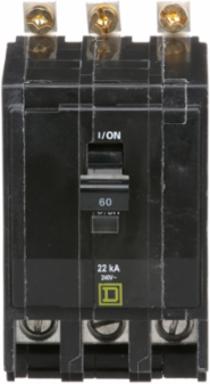

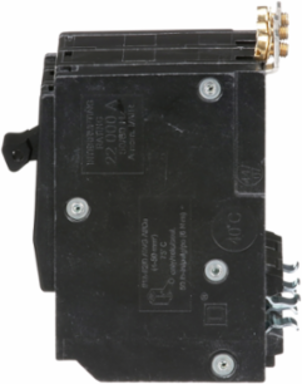

Square D QOB360VH Mini Circuit Breaker 60A 3 Pole 120/240V AC 22kA Bolt-On Mount
Square D QOB360VH Mini Circuit Breaker 60A 3 Pole 120/240V AC 22kA Bolt-On Mount
- MPN: QOB360VH
- UPC: 785901054832
- PPN: SCH-QOB360VH
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$361.31/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 60A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Current Rating
- 60 A
- Interrupt Rating
- 22 kA 120/240 V AC 50/60 Hz
- Circuit Breaker Type
- Standard
- Electrical Connection
- Box lugs
- Tightening Torque
- 5.6 N·m

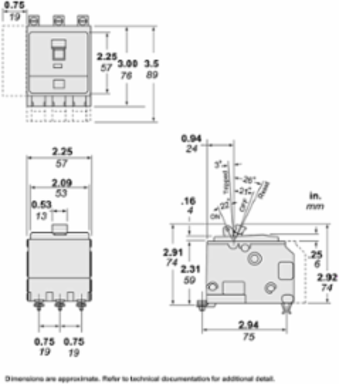

- Width
- 57 mm (2.24 in)
- Net Weight
- 0.499 kg (1.10 lb)
- Mercury Free
- Yes
- Halogen Content
- Halogen free product
- Country of Origin
- Mexico
- Range Of Product
- QO
Voltage120/240 V AC
Number of Poles3
Mounting TypeBolt-On
Wire SizeAWG 8...AWG 2 copper or aluminum
Height79 mm (3.11 in)
Depth74 mm (2.91 in)
Ambient Air Temperature For Operation40 °C (104 °F)
RoHS ComplianceCompliant with Exemptions
Product CertificationsUL Listed, CSA Certified
Number Of Spaces Required3
Warranty18 months
