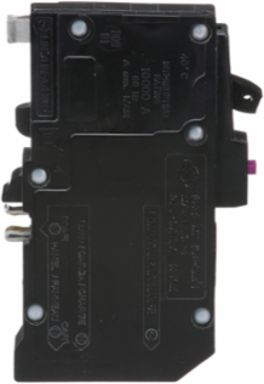

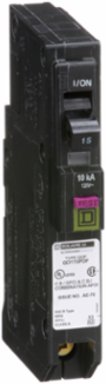

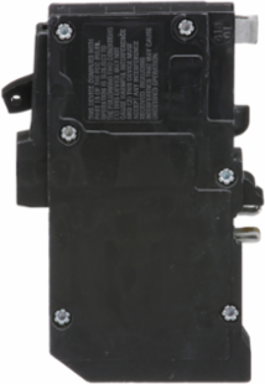

Square D QO115PDF Mini Circuit Breaker 15A 1 Pole 120VAC 10kA Plug-in Mount
- MPN: QO115PDF
- UPC: 785901741169
- PPN: SCH-QO115PDF
CAD
$175.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mini Circuit Breaker 15A 1 Pole 120VAC 10kA Plug-in Mount
Documentation & Downloads
Specifications
Additional
- Rated Current
- 15 A
- Breaking Capacity
- 10 kA 120 V AC 50/60 Hz
- Circuit Breaker Type
- Combination ARC-fault and ground fault
- HACR Rated
- Yes
- Wire Size
- AWG 14 to AWG 8 copper or aluminum
- Terminals
- Plug-on neutral
- Width
- 19 mm
- Tightening Torque
- 4 N.m
- Material
- Mercury Free
- RoHS Compliance
- Compliant with Exemptions
Voltage120 V AC
Number of Poles1
Ambient Temperature Rating40 0C
Mounting TypePlug-in
Connection TypePressure plate

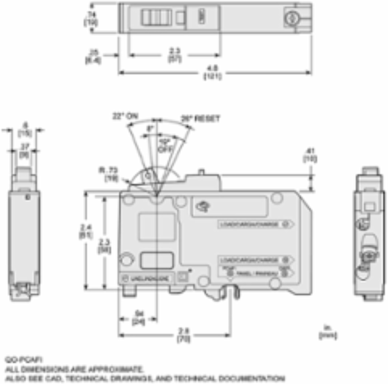

Height121 mm
Depth74 mm
Net Weight0.254 kg
CertificationsUL Listed, CSA Certified
Country of OriginMexico
