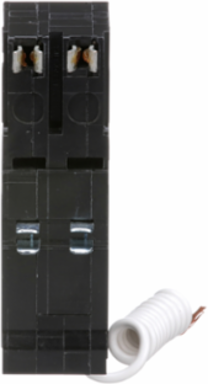

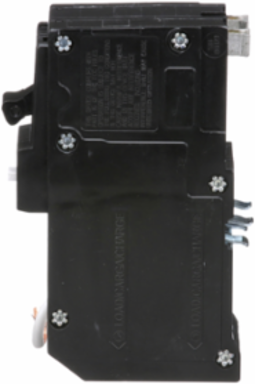

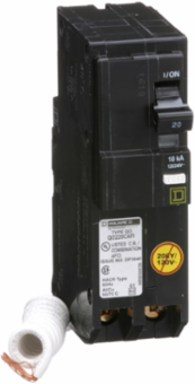

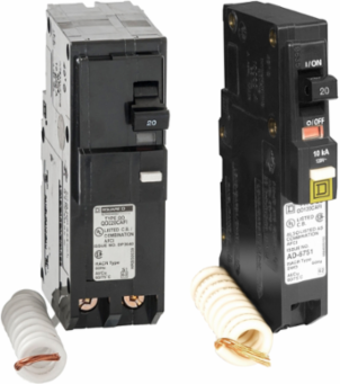

Square D QO220CAFI Mini Circuit Breaker 20A 2 Pole 120/240V AC 10kA Plug-In Mount
- MPN: QO220CAFI
- UPC: 785901389460
- PPN: SCH-QO220CAFI
CAD
$291.46
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mini Circuit Breaker 20A 2 Pole 120/240V AC 10kA Plug-In Mount
Features
- This circuit breaker is specifically engineered for exclusive use within Square D QO residential load centers, NQOD panelboards, and Speed-D switchboard distribution panels. It will not fit Homeline or competitor panels, ensuring a secure, engineered mechanical fit that eliminates loose connections and critical failure points during installation.
- This model features a traditional pigtail neutral wire configuration, making it fully backwards-compatible with older, non-plug-on-neutral Square D QO panels. You can confidently upgrade legacy panels to modern safety standards without needing to replace the entire enclosure or bus bar layout.
- This dual-pole miniature thermal-magnetic breaker delivers a reliable 20-amp capacity at 120/240V AC with a 10 kAIC interrupting rating. It is purpose-built to handle demanding residential and commercial branch circuits, offering robust overcurrent safety for heavy appliances and critical equipment.
- Boasting a 10 kA (10,000 AIR) short-circuit interrupting capacity, this thermal-magnetic breaker effortlessly manages heavy fault currents to protect sensitive electronics and branch wiring from catastrophic damage. Its quick-make, quick-break internal toggle mechanism operates independently of the handle speed to suppress internal arcing and prolong the mechanical lifespan of your panel hardware.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 74 mm |
| Compliance | TAA Compliant |
|---|
Complementary Attributes
| Line Rated Current | 20 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC |
|---|---|
| Certificate Agency | UL Listed, CSA |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1097336968, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0029943458, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 37 kg CO2 eq., 37.375 |
| Local Publishable Date | 2026-04-14 |
| Stocking Flag | N |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2212005 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Circuit Breaker Application | HACR rated |
| Electrical Connection | pressure plate |
| Mounting Mode | plug-in |
| Number Of Spaces Required | 2 |
| Product Or Component Type | miniature circuit-breaker |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 41 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120 VAC and rated current 15A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA; |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Mexico |
| Energy Model - Use [B6] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Height Nominal | 121 mm |
| Connections - Terminals | pigtail neutral |
| Package Weight(Lbs) | 435.448 g |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 455.05 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 5.7146 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 503.15 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 472.94 |
| Water Pollution (M3) Operational Energy Use [B6] | 1842.6 |
| Persona Type Names | End User, Contractor |
|---|---|
| [Ue] Rated Operational Voltage | 120/240 V AC, 120 V AC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.0887834138 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 3 kg CO2 eq., 3.3253920066 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Use Carbon Footprint | 37.375 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Awg Gauge | 14 AWG...8 AWG copper12 AWG...8 AWG aluminium |
| Circuit Breaker Type | combination ARC-fault |
| Energy Efficiency Optimized | False |
| Number Of Poles | 2P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QO |
| Software Version | EIME v5.9.4 |
| Tightening Torque | 4-4 N.m |
| Pep Code | ENVPEP2212005EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Width Nominal | 38 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 3173.9 |
| Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] | 37.375 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 472.94 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 30.218 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 30.218 |
| Customs Code | 8536200040 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 40.901903463 |
| Circularity Profile | ENVEOLI2212005 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2212005EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 40 °C |
| Environmental Disclosure | ENVPEP2212005EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | miniature circuit-breaker |
|---|
| Range Of Product | QO |
|---|
