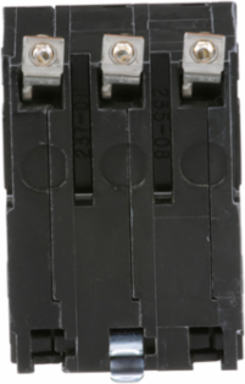

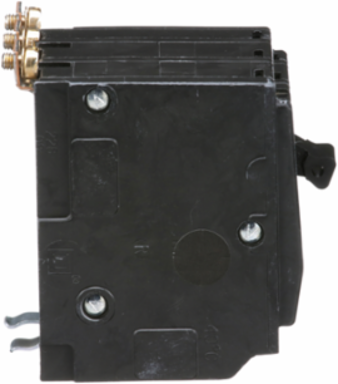

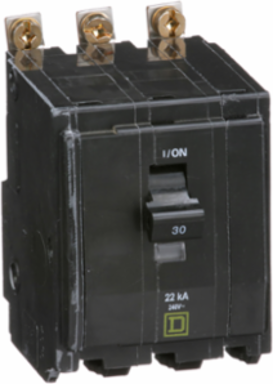

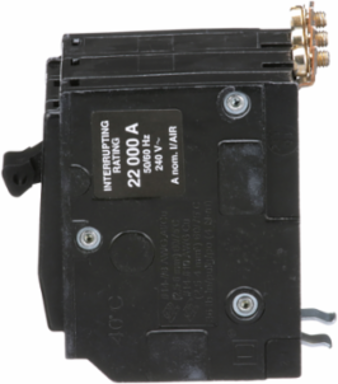

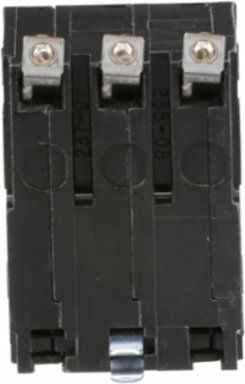

Square D QOB330VH QO Mini Circuit Breaker 30A 3 Pole 120/240VAC 22kA Bolt-On Mount
Square D QOB330VH QO Mini Circuit Breaker 30A 3 Pole 120/240VAC 22kA Bolt-On Mount
- MPN: QOB330VH
- UPC: 785901371984
- PPN: SCH-QOB330VH
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$361.31/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Current Rating
- 30 A
- Breaking Capacity
- 22 kA
- Mounting Type
- Bolt-on
- Ratings
- HACR rated
- Wire Size
- AWG 14 to AWG 8 copper or aluminum

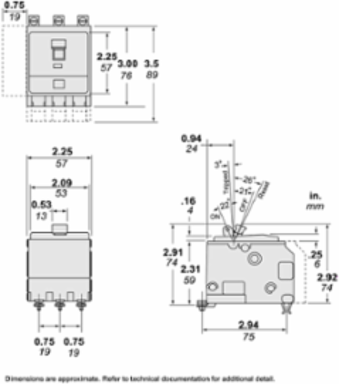

- Height
- 76 mm
- Depth
- 74 mm
- Ambient Operating Temperature
- 40 °C
- RoHS Compliance
- Compliant with Exemptions
- Mercury Free
- Yes
- Warranty
- 18 months
- Product Range
- QO
Voltage120/240 V AC
Number of Poles3
Circuit Breaker TypeStandard
Electrical ConnectionPressure plate
Tightening Torque4.6 N.m
Width57 mm
Net Weight0.363 kg
CertificationsUL listed, CSA certified
Halogen ContentHalogen free
Toxic Heavy Metal FreeYes
Product TypeMiniature circuit-breaker
