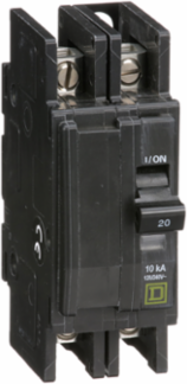

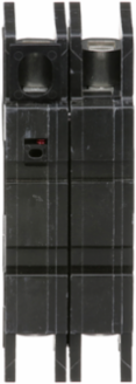

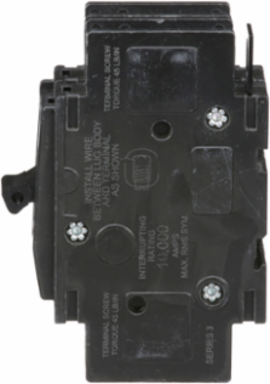

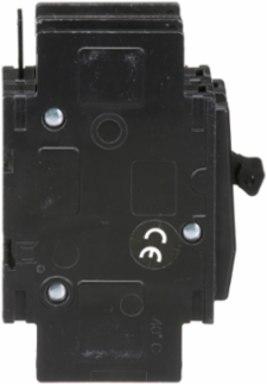

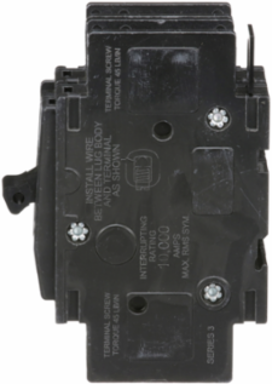

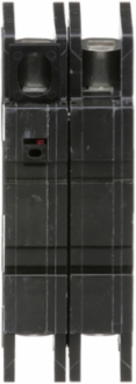

Square D QOU220 Mini Circuit Breaker 20A 2 Pole 120/240VAC 10kA 4.05 Inch Height
- MPN: QOU220
- UPC: 785901418689
- PPN: SCH-QOU220
CAD
$258.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 20A, 240VAC. This circuit breaker provides 10 kA breaking capacity. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA.
Features

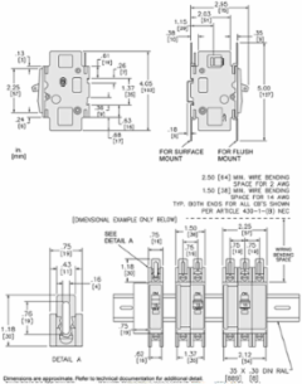

- Featuring an incredibly flexible "unit-mount" chassis, this 2-pole miniature circuit breaker can be DIN rail-mounted, surface-mounted, or flush-mounted utilizing specialized mounting feet. This makes it an invaluable, adaptable asset for original equipment manufacturers (OEMs) and commercial panel builders who need a single, reliable component that fits varied enclosure architecture without buying dedicated panel hardware.
- Engineered with an expansive voltage profile, this 20A thermal-magnetic breaker operates flawlessly on 120/240V AC networks as well as 48V DC infrastructure. This dual-system compatibility allows maintenance engineers to standardize on a uniform circuit protection model across standard building lines, HVAC components, and low-voltage DC auxiliary battery banks.
- Built with versatile, slotted box lugs on both the line side and load side, this standalone breaker handles direct cable-in/cable-out point-to-point wiring configurations. It eliminates the need for expensive, specialized distribution busbars or loadcentre structures, allowing for quick, isolated sub-circuit installation directly adjacent to standalone industrial control machinery.
- Equipped with Square D's patented Visi-Trip visual window indicator, a high-visibility mechanical red flag pops into view the exact moment the breaker interrupts a fault. This instantly differentiates a tripped breaker from one that has been manually turned off, significantly reducing plant diagnostic labor and helping field operators safely isolate and resolve downstream faults faster.
- Boasting a robust 10 kA short-circuit current rating (kAIC) at 120/240V AC and a 5 kA rating at 48V DC, this breaker delivers high-tier safety suppression against sudden short circuits. The glass-reinforced thermoset composite housing provides high dielectric strength and structural containment, protecting delicate nearby instrumentation from catastrophic thermal-magnetic blast energies.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth2.95 in
Complementary Attributes
- Line Rated Current
- 20 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Electrical Connection
- slotted box lugs, line side, slotted box lugs, load side
- [Ue] Rated Operational Voltage
- 120/240 V AC, 120 V AC, 48 V DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.06219
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.98783
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Energy Efficiency Optimized
- False
- Number Of Poles
- 2P
- Product Or Component Type
- miniature circuit-breaker
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 19 kg CO2 eq.
- Pep Code
- ENVPEP2111016EN
- Pep Verification Date
- 2021-11-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
- Height Nominal
- 4.05 in
- Short-circuit Current
- 10 kA
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Manufacturing [A1-a3]
- 454.11
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 33.351
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 1.5288
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 52.875
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 5.4405
- Water Pollution (M3) Manufacturing [A1-a3]
- 163.881
- Water Pollution (M3) End Of Life [C1-c4]
- 4.4721
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Certificate AgencyCSA, IEC, UL Listed
Carbon Footprint Of The Distribution Phase [A4]0.043893, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.000084978, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]17 kg CO2 eq., 17.3042434783
Local Publishable Date2026-03-26
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2534
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationCommercial
Awg GaugeAWG 14...AWG 2 aluminium/copper
Circuit Breaker Typestandard
Mounting Modeunit mount
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQOU
Software VersionEIME v5.9.1
Tightening Torque45-45 lbf.in (AWG 14...AWG 2)
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh24.8784
Energy Model - Installation [A5]Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Width Nominal1.5 in
Halogen-free StatusHalogen free product
Package Weight(Lbs)344.730 g
Warranty (In Months)18
Air Pollution (M3) End Of Life [C1-c4]3.5406
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]11.9352
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]51.141
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle5.4405
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]45.702
Water Pollution (M3) Distribution [A4]7.218
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Halogene Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 19.3982414563
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2021-11-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2111016EN
Halogen Content PerformanceHalogen free product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2111016EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductQOU
ETIM
- ETIM 8
- EC000042
ETIM 9EC000042
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Accessories
